YFF15PC0J474MT000N

Overview

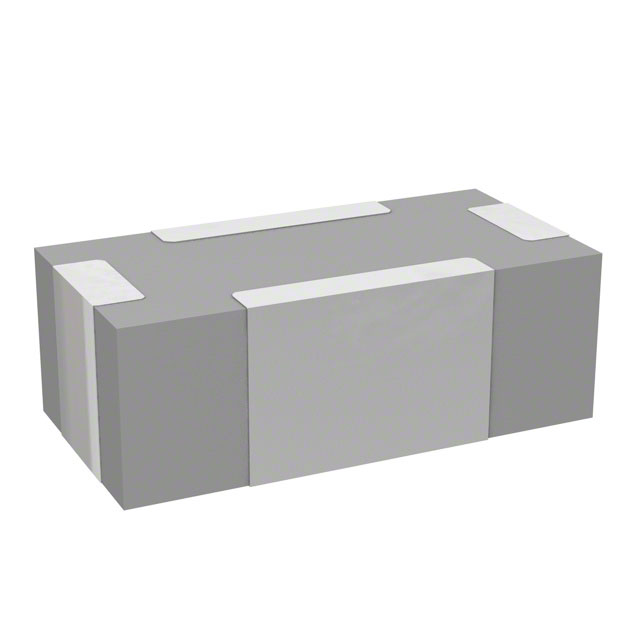

The TDK YFF15PC0J474MT000N is a surface-mount three-terminal feedthrough capacitor designed for electromagnetic interference (EMI) suppression. It features a capacitance of 0.47 µF with a ±20% tolerance and a rated voltage of 6.3 V DC. The component supports a maximum DC current of 3 A and exhibits a maximum DC resistance of 30 mΩ. Housed in a compact 0402 (1005 metric) package measuring 1.00 mm x 0.55 mm x 0.35 mm, it operates within a temperature range of -55°C to +105°C.

Feature Summary

• Provides high attenuation performance across a wide frequency band for effective EMI suppression.
• Supports high DC current loads up to 3 A suitable for power line filtering applications.
• Utilizes a three-terminal structure to minimize parasitic inductance and enhance filtering efficiency.

Applications

• Power supply input filtering for information technology equipment
• EMI suppression on signal lines in compact electronic devices
• Noise reduction in portable consumer electronics requiring small form factors

Procurement Notes

Verify the specific suffix MT000N against official TDK documentation to confirm packaging type and tape-and-reel specifications. Ensure the 6.3 V rating aligns with circuit requirements as derating may be necessary for reliability. Confirm RoHS compliance status through the manufacturer's latest environmental declaration before integration into regulated assemblies.

Selection Notes

Select this component when space constraints require a 0402 footprint but high current handling is needed. The 0.47 µF value offers a balance between bulk capacitance and physical size. Compare against the YFF-SC series if lower capacitance or higher voltage ratings are required for specific signal line applications.

Part Context

This part belongs to the TDK YFF-P series of three-terminal feedthrough capacitors. These components are engineered as high-performance EMC filters that replace standard MLCCs in noise-sensitive circuits. The series is characterized by its ability to handle significant DC currents while maintaining low impedance paths for high-frequency noise.

FAQ

What is the maximum DC current rating for this component?

The YFF15PC0J474MT000N has a maximum DC current rating of 3 A.

Does this component support surface mount technology?

Yes, it is designed for surface mounting in a 0402 (1005 metric) package.
