Product Detailed Parameters
- Description：COMMERCIAL GRADE FEED THROUGH FI
- Series：YFF-P
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Rated：35V
- Current：2:00 AM
- Operating Temperature：-55°C ~ 105°C
- Mounting Type：Surface Mount
- Package / Case：0402 (1005 Metric), 3 PC Pad
- Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
- Capacitance：0.22 µF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：45mOhm
- Insertion Loss：40dB @ 4MHz ~ 2GHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：0.020" (0.50mm)
- Thread Size：-
Download product information
Overview

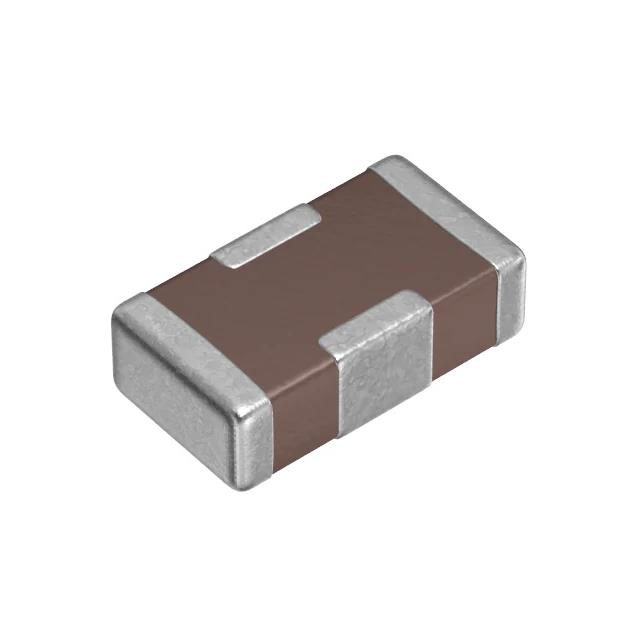

The YFF15PC1V224MT000N is a 0.22 µF feedthrough capacitor from the TDK YFF-P series, rated at 35 V DC with ±20% tolerance. Designed for surface mount installation in a compact 0402 (1005 Metric) package measuring 1.00 mm x 0.55 mm x 0.30 mm, it supports a maximum DC current of 2 A and features a maximum DCR of 45 mΩ. The component operates within a temperature range of -55°C to +105°C and utilizes a three-pad footprint configuration.
Feature Summary
- Integrates high capacitance density within a miniature 0402 surface-mount footprint
- Provides effective electromagnetic interference suppression through feedthrough architecture
- Supports high continuous DC current handling capabilities
Applications
- High-density PCB layouts requiring compact EMI filtering
- Power supply input/output stages for noise attenuation
- Signal line protection in portable electronic devices
Procurement Notes
Verify the specific voltage rating and current capacity against circuit requirements before integration. Confirm that the 0402 package dimensions align with the designated PCB land pattern. Ensure thermal management strategies accommodate the specified operating temperature range during operation.
Selection Notes
Select this component when space constraints necessitate a 0402 form factor while maintaining significant capacitance values. Consider the 2 A current rating and 45 mΩ resistance for power integrity analysis. Evaluate the 35 V rating against peak transient voltages present in the target application environment.
Part Context
This part belongs to the TDK YFF-P series of commercial-grade MLCC feedthrough filters. These components are engineered to replace traditional discrete filter assemblies, offering superior performance in a significantly reduced physical volume suitable for modern miniaturized electronics.
Replacement Considerations
Consult official TDK documentation for verified cross-references or updated series replacements. Do not substitute based on generic electrical similarities without verifying package compatibility and manufacturer specifications.
