YFF18PH0J106MT00HE

Overview

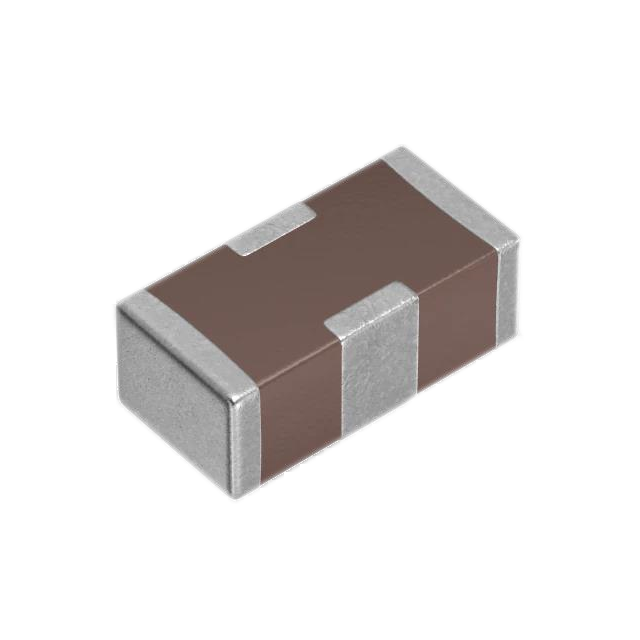

The YFF18PH0J106MT00HE is a TDK feedthrough capacitor from the YFF-P series, designed for surface-mount applications. It features a capacitance of 10 µF with a ±20% tolerance and a voltage rating of 6.3 V DC. The component supports a current rating of 4 A and operates within a temperature range of -55°C to +85°C. Its physical dimensions correspond to the 0603 [1608 Metric] package, measuring 1.6 mm in length and 0.8 mm in width.

Feature Summary

• Provides electromagnetic interference suppression through integrated feedthrough filtering capabilities.
• Utilizes a compact surface-mount form factor suitable for high-density circuit board layouts.
• Constructed as a three-terminal device to enhance high-frequency noise attenuation performance.

Applications

• Power supply input/output filtering
• General-purpose electromagnetic interference suppression
• Data processing equipment signal conditioning

Procurement Notes

Verify the specific ordering suffix against official TDK documentation to ensure correct packaging and variant selection. Confirm that the 6.3 V rating and 10 µF capacitance align with your circuit requirements. Check RoHS compliance status if required by your manufacturing standards. Ensure the 0603 footprint matches your PCB design constraints before finalizing procurement.

Selection Notes

Select this component when a low-profile, high-capacitance feedthrough solution is needed for 6.3 V systems. The 4 A current rating makes it suitable for power lines where significant ripple reduction is required. Consider the 0603 size constraint for space-limited designs. Compare against other YFF-P series variants if different capacitance or voltage values are necessary for the specific application environment.

Part Context

This part belongs to the TDK YFF-P series of feedthrough capacitors, which are engineered for effective noise suppression in electronic circuits. The series offers various capacitance values and voltage ratings within standardized surface-mount packages. These components integrate filtering functions directly into the capacitor structure, simplifying circuit design compared to discrete filter networks.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult TDK technical support or authorized distributors for verified alternatives that match the electrical specifications and mechanical footprint.
