YFF31HC2A103MT000N

Overview

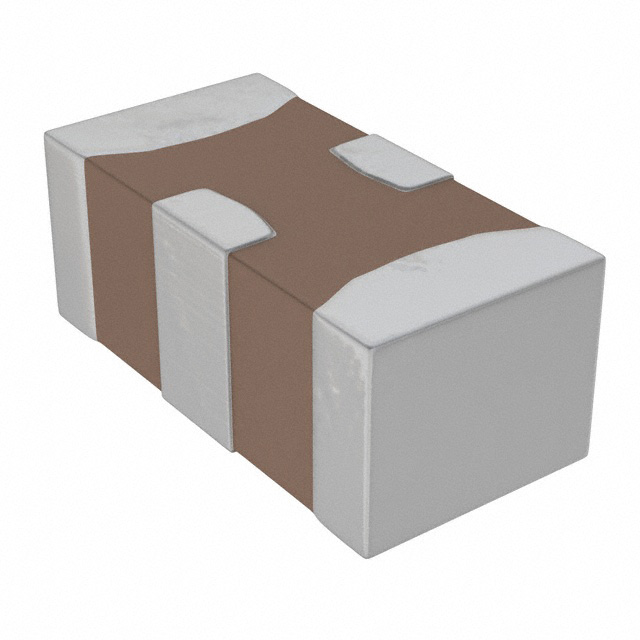

The TDK YFF31HC2A103MT000N is a feed-through capacitor with a capacitance of 10 nF (±20% tolerance) and an X7S dielectric. It features a rated DC voltage of 100 V and a maximum rated current of 10 A. The component has a maximum DC resistance of 1500 µΩ and operates within a temperature range of -55°C to +125°C. It utilizes a surface-mount 1206 (3216 metric) package measuring 3.2 mm in length, 1.6 mm in width, and 1.3 mm in thickness.

Feature Summary

• Feed-through circuit topology for effective EMI/RFI suppression
• High current handling capability up to 10 A
• Low DC resistance design for minimal signal loss
• Surface-mount construction for automated assembly

Applications

• Broadband EMI suppression in GHz frequency ranges
• Power line filtering in electronic circuits
• Noise reduction in high-frequency signal paths

Procurement Notes

Verify the specific suffix MT000N against official TDK documentation to confirm exact packaging and tape-and-reel specifications. Ensure the selected variant matches the required 1206 footprint and 100 V rating for your design. Cross-reference the datasheet for RoHS compliance and SVHC status prior to final procurement decisions.

Selection Notes

Select this component when high-current bypassing and broadband noise attenuation are required in compact spaces. The 1206 package offers a balance between current capacity and board area. Verify that the 100 V DC rating exceeds the peak operating voltage and that the 10 A current limit accommodates the circuit's maximum load without exceeding thermal constraints.

Part Context

This part belongs to the TDK YFF-HC series of feed-through capacitors. These components are designed as surface-mount alternatives to traditional through-hole feed-through capacitors, offering improved performance in high-frequency applications while maintaining compatibility with standard SMD manufacturing processes.

Replacement Considerations

Consult TDK's official substitution guide for verified equivalents. Ensure any replacement maintains the 1206 footprint, 100 V rating, and 10 A current handling capability.
