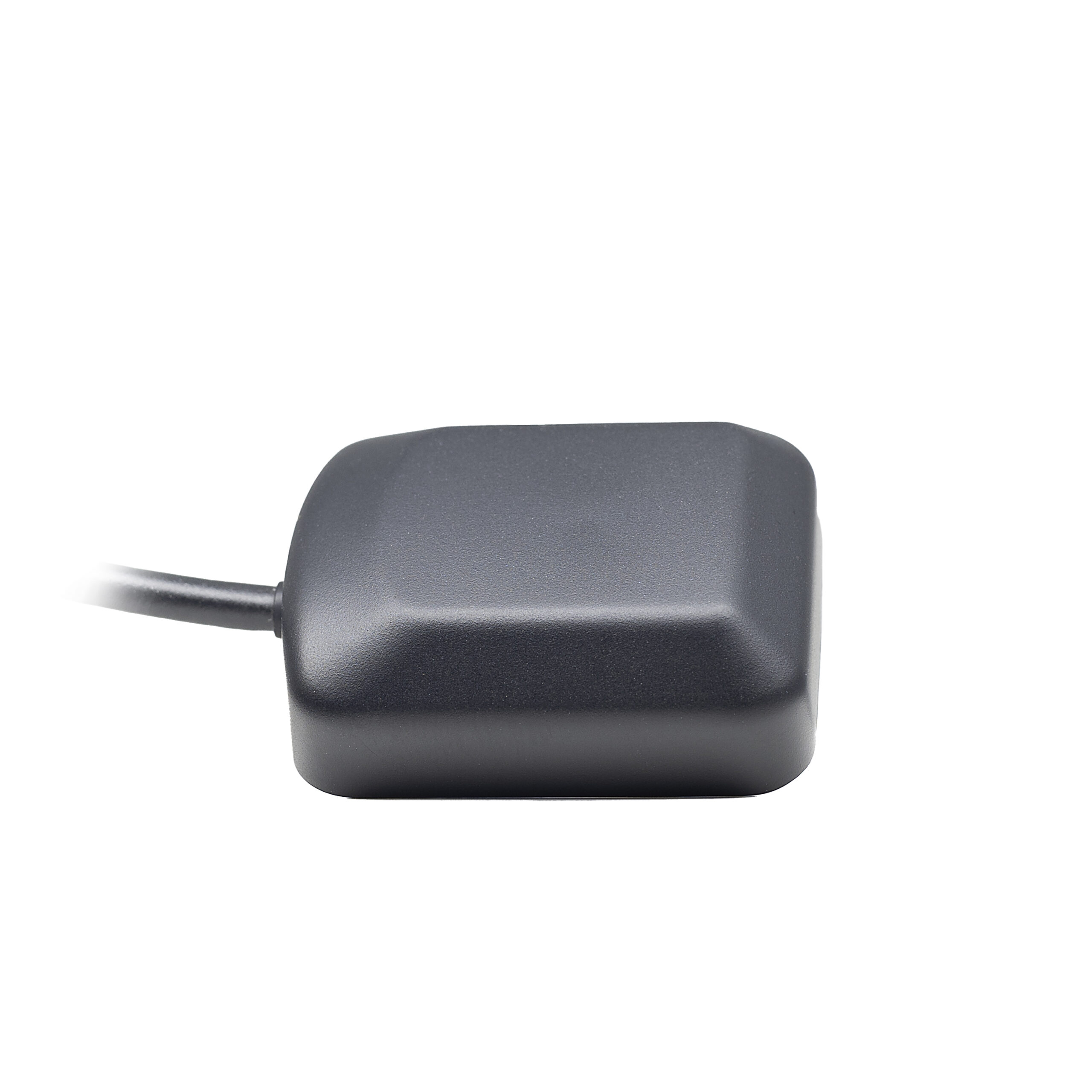

YOP-5270-ZZ01-YM is listed in the Antennas RF range at ChipApex. The manufacturer field lists Yokowo Manufacturing of America, LLC.. Its product description is GNSS Antenna L1 (Magnet). Review the specifications below when checking this part for your BOM.
Antennas RF specifications for YOP-5270-ZZ01-YM
- Description：GNSS Antenna L1 (Magnet)
- Series：*
- Mfr：Yokowo Manufacturing of America, LLC.
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：L Band (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：1.559GHz ~ 1.606GHz
- Antenna Type：Omni-Directional
- Number of Bands：3
- VSWR：1.3, 1.4, 1.4
- Return Loss：-15.8dB, -15.8dB, -17.7dB
- Gain：23.7dBi, 23.8dBi, 24.2dBi
- Features：Cable - 5m
- Termination：SMA Male (1)
- Ingress Protection：-
- Grade：Automotive
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：0.460" (11.70mm)
- Applications：BeiDou, Galileo, GLONASS, GPS, QZSS
- Power - Max：-
Antennas RF datasheet and documents for YOP-5270-ZZ01-YM
Antennas RF Overview
The YOP-5270-ZZ01-YM is an RF antenna designed for BeiDou, Galileo, GLONASS, GPS, and QZSS satellite navigation systems. It features an omni-directional radiation pattern with a magnetic base for secure mounting. The connector interface is SMA Male (1). This component supports right-hand circular polarization and is engineered for automotive navigation and fleet management applications.
Antennas RF Feature Summary
- Supports multi-constellation satellite navigation including BeiDou, Galileo, GLONASS, GPS, and QZSS
- Omni-directional radiation pattern ensures consistent signal reception from all azimuth angles
- Integrated magnetic base allows for rapid and secure installation on vehicle surfaces
Antennas RF Applications
- Automotive navigation systems
- Fleet management tracking devices
- Vehicle telematics units
Antennas RF Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure compatibility with required interface types and mounting configurations. Confirm that the SMA Male connector matches the host system requirements. Cross-reference the part number with the latest Yokowo Manufacturing of America, LLC datasheets to validate current production status and technical specifications before procurement.
Antennas RF Selection Notes
Select this model when multi-constellation support is required for global positioning accuracy. The magnetic base facilitates easy integration into vehicles without permanent modification. Ensure the host system accommodates the SMA Male interface and provides appropriate power supply for any integrated low-noise amplifier components if applicable.
Antennas RF Part Context
Yokowo Manufacturing of America, LLC specializes in electronic components, including connectors and antennas. The YOP-5270 series is part of their portfolio targeting automotive applications. This specific model integrates satellite navigation capabilities with robust mounting solutions for mobile environments.
Antennas RF Replacement Considerations
Consult official Yokowo documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' antennas due to potential differences in impedance, gain, or connector specifications.
