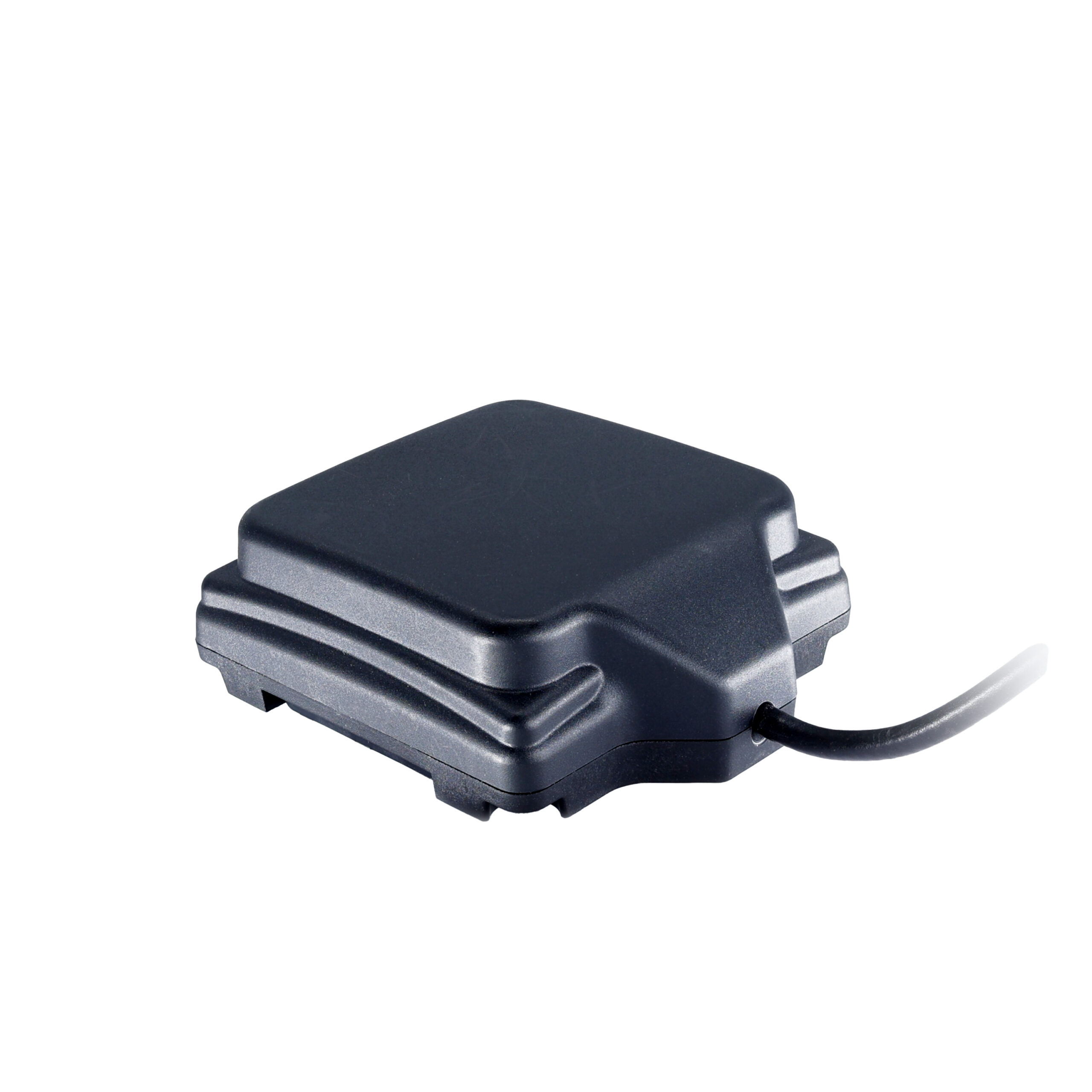

YOZ-52570ZZ01-YM is listed in the Antennas RF range at ChipApex. The manufacturer field lists Yokowo Manufacturing of America, LLC.. Its product description is GNSS Antenna L1 L2. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for YOZ-52570ZZ01-YM
- Description：GNSS Antenna L1 L2
- Series：High Precision GNSS Antenna
- Mfr：Yokowo Manufacturing of America, LLC.
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：L Band (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.207GHz, 1.228GHz,1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz
- Antenna Type：Omni-Directional
- Number of Bands：6
- VSWR：1.8, 3.0, 1.9, 1.8, 2.1, 1.4
- Return Loss：-10.9dB, -6.0dB, -10.2dB, -10.9dB, -9.0dB, -15.6dB
- Gain：29.2dBic, 29.5dBic, 29.4dBic, 27.9dBic, 26.3dBic, 25.8dBic
- Features：Cable - 5m
- Termination：SMA Male (1)
- Ingress Protection：IP67
- Grade：Automotive
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：2.220" (56.40mm)
- Applications：Beidou, GLONASS, GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for YOZ-52570ZZ01-YM
Antennas RF Overview
The YOZ-52570ZZ01-YM is an RF antenna designed for Beidou, GLONASS, GNSS, and GPS applications. It features an omni-directional radiation pattern to ensure consistent signal reception from all directions. The component utilizes an SMA male connector interface for secure attachment to host systems. An adhesive mounting method is specified for installation on vehicle surfaces or other suitable substrates.
Antennas RF Feature Summary
- Supports multiple global navigation satellite systems including Beidou, GLONASS, GNSS, and GPS
- Omni-directional design ensures uniform signal coverage without orientation constraints
- Equipped with an SMA male connector for reliable electrical interfacing
- Adhesive backing facilitates direct surface mounting
Antennas RF Applications
- Vehicle tracking and telematics systems
- GNSS positioning modules
- Automotive navigation equipment
- Beidou and GLONASS receiver integration
Antennas RF Procurement Notes
Verify the specific ordering suffix against official Yokowo documentation to confirm functional equivalence. Ensure the SMA male connector type matches the receiving cable assembly. Confirm adhesive compatibility with the target installation surface material prior to procurement.
Antennas RF Selection Notes
Select this model when multi-constellation support for Beidou, GLONASS, GNSS, and GPS is required. The omni-directional characteristic suits applications where antenna orientation cannot be strictly controlled. The adhesive mount option simplifies integration into compact or curved enclosures.
Antennas RF Part Context
Yokowo Manufacturing of America, LLC distributes components manufactured by Yokowo Co., Ltd., a Japanese entity established in 1922. The company specializes in connectors and antennas, expanding its portfolio beyond initial pogo pin products. This part falls within their RF antenna product line.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided source data. Cross-referencing requires verification of identical electrical parameters and mechanical interfaces through official Yokowo channels.
