YOZ-52728ZZ01-YM

Antennas RF Overview

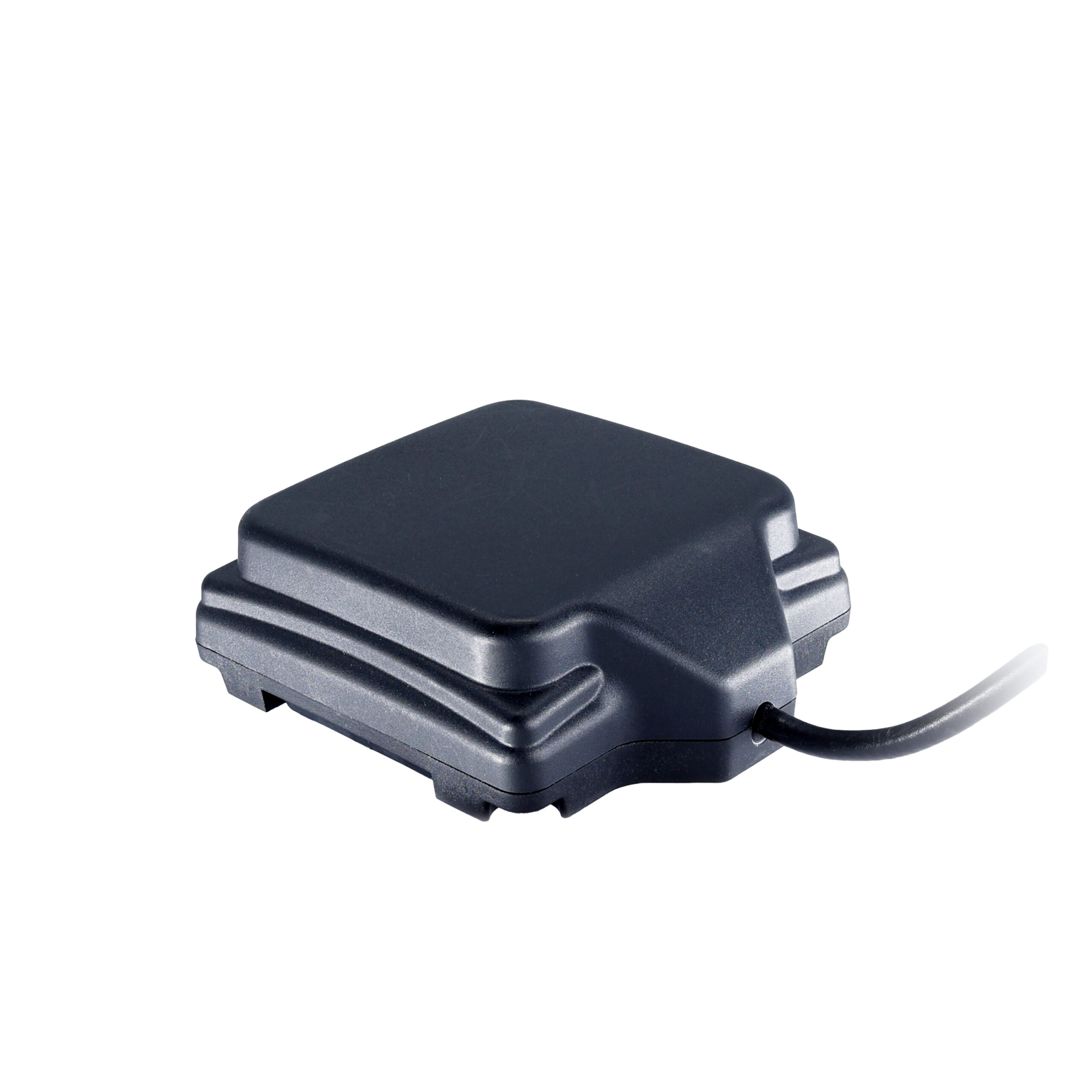

The YOZ-52728ZZ01-YM is an RF antenna manufactured by Yokowo. It supports Beidou, GLONASS, Galileo, GPS, and QZSS navigation systems. The device operates in the L-band frequency range. It features an SMA male connector interface. The design is omni-directional for consistent signal reception. The unit utilizes an adhesive mounting method for installation.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Galileo, Beidou, and QZSS
• Features an omni-directional radiation pattern for reliable signal acquisition
• Equipped with an SMA male connector for standard RF interfacing
• Utilizes an adhesive backing for secure attachment to vehicle surfaces

Antennas RF Applications

• Vehicle tracking and telematics systems
• Automotive navigation units
• Fleet management devices
• GNSS receiver integration

Antennas RF Procurement Notes

Verify that the specific model suffix YM matches the required connector orientation and adhesive specifications. Confirm compatibility with the target GNSS receiver's L-band input requirements. Ensure the adhesive type meets the environmental conditions of the intended installation site. Cross-reference the SMA male interface with existing cable assemblies to prevent connection mismatches during assembly.

Antennas RF Selection Notes

Select this component when multi-constellation support is required for automotive applications. The omni-directional design suits scenarios where antenna orientation may vary. The adhesive mount eliminates the need for mechanical fasteners, simplifying integration into curved vehicle surfaces. Verify that the L-band performance aligns with the system's sensitivity requirements.

Antennas RF Part Context

Yokowo Manufacturing of America produces specialized RF components for the automotive sector. This antenna belongs to their GNSS product line designed for vehicle integration. The company focuses on compact, high-performance antennas for navigation and tracking. The YOZ series typically includes variants optimized for different mounting styles and connector types.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must verify pinout and electrical parameters before substituting with other manufacturers' antennas. Direct replacement requires matching the SMA male interface and adhesive mounting profile.
