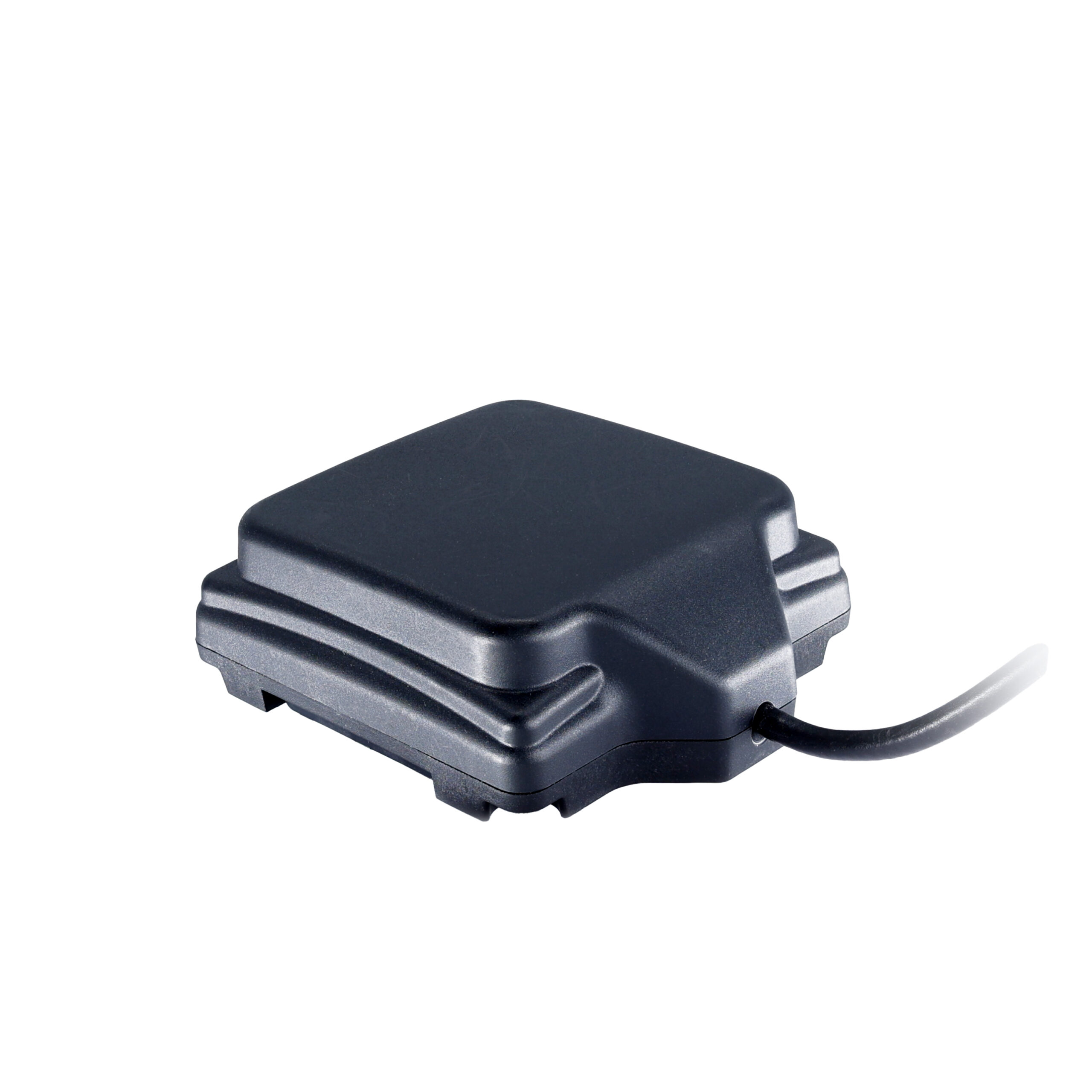

YOZ-52728ZZ02-YM is listed in the Antennas RF range at ChipApex. The manufacturer field lists Yokowo Manufacturing of America, LLC.. Its product description is High Precision GNSS Antenna (Ful. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for YOZ-52728ZZ02-YM
- Description：High Precision GNSS Antenna (Ful
- Series：High Precision GNSS Antenna
- Mfr：Yokowo Manufacturing of America, LLC.
- Package：Bulk
- RF Family/Standard：Navigation
- Frequency Group：L Band (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.539GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.176GHz, 1.207GHz, 1.227GHz, 1.245GHz, 1.268GHz, 1.278GHz
- Frequency Range：1.525GHz ~ 1.606GHz, 1.166GHz ~ 1.284GHz
- Antenna Type：Omni-Directional
- Number of Bands：10
- VSWR：1.0, 1.1, 1.1, 1.1, 1.1, 1.1, 1.1, 1.0, 1.1, 1.1
- Return Loss：-36.4dB, 32.2-dB, -30.8dB, -27.9dB, -27.7dB, -32.8dB, -28dB, -25.2dB, -35.4dB, -32.2dB
- Gain：27.9dBic, 27.3dBic, 26.5dBic, 25.7dBic, 27.2dBic, 29.1dBic, 30.6dBic, 30.2dBic, 28.0dBic, 25,8dBic
- Features：Cable - 5m
- Termination：SMA Male (1)
- Ingress Protection：IP67
- Grade：Automotive
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：2.220" (56.40mm)
- Applications：Beidou, GLONASS, Galileo, GPS, QZSS, L-band
- Power - Max：-
Antennas RF datasheet and documents for YOZ-52728ZZ02-YM
Antennas RF Overview
The YOZ-52728ZZ02-YM is an RF antenna manufactured by Yokowo Manufacturing of America, LLC. It supports Beidou, GLONASS, Galileo, GPS, and QZSS satellite navigation systems. The device features an L-band frequency range with omni-directional radiation characteristics. It utilizes an SMA Male connector interface for signal transmission. The unit includes a magnetic base for secure attachment to metallic surfaces. This configuration ensures reliable positioning data reception in mobile applications.
Antennas RF Feature Summary
- Supports multiple global satellite navigation constellations including Beidou, GLONASS, Galileo, GPS, and QZSS
- Features omni-directional radiation pattern for consistent signal reception across all azimuth angles
- Equipped with a magnetic mounting base for rapid installation on ferromagnetic vehicle surfaces
- Utilizes an SMA Male connector interface for standard RF cable integration
Antennas RF Applications
- Vehicle tracking and telematics systems
- Marine navigation equipment
- Agricultural machinery guidance systems
- Fleet management solutions
Antennas RF Procurement Notes
Verify the specific ordering suffix against the official Yokowo datasheet to confirm connector type and mounting style. Ensure the required satellite band support matches your system design. Confirm the SMA male interface compatibility with existing cabling infrastructure before finalizing procurement orders.
Antennas RF Selection Notes
Select this model when multi-constellation GNSS support is required for high-precision positioning. The magnetic base simplifies installation compared to screw-mount alternatives. Verify that the L-band frequency range aligns with the intended receiver input specifications for optimal signal integrity.
Antennas RF Part Context
Yokowo Manufacturing of America, LLC operates as the North American subsidiary of Yokowo Co., Ltd., a Japanese manufacturer established in 1922. The company specializes in connectors and antennas for automotive and industrial applications. This part number represents their dedicated GNSS antenna product line designed for robust outdoor performance.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-reference with Yokowo's current catalog for direct replacements or updated series equivalents.
