YS8063

Antennas RF Overview

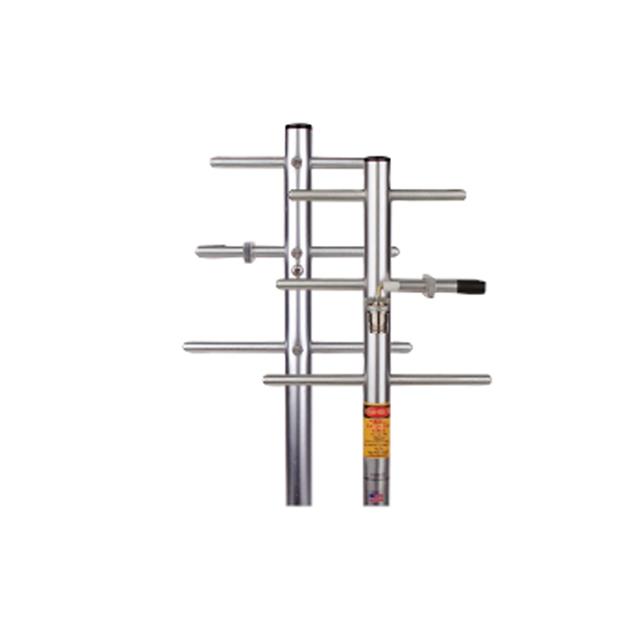

The YS8063 is a three-element Yagi antenna manufactured by TE Connectivity, designed for operation within the 806 to 896 MHz frequency range. It provides a gain of 6 dBd (equivalent to 8.15 dBi) and supports a maximum power input of 300 watts. The unit features an N-type female RF connector and utilizes U-bolts for bracket mounting hardware.

Antennas RF Feature Summary

• Three-element Yagi design optimized for directional signal transmission
• Supports high power input up to 300 watts
• Includes U-bolt hardware for secure bracket mounting

Antennas RF Applications

• Point-to-point radio communication links
• Directional telemetry systems
• Industrial wireless data transmission

Antennas RF Procurement Notes

Verify current manufacturing status and availability directly with TE Connectivity or authorized distributors, as component supply chains may change. Confirm that the N-type female connector interface matches existing system requirements. Ensure the specified 300-watt power rating aligns with operational parameters to prevent damage.

Antennas RF Selection Notes

Select this model when directional gain is required in the 806-896 MHz band. The 6 dBd gain offers improved range compared to omnidirectional alternatives. Verify compatibility with N-type connectors and ensure mounting structures can support the physical dimensions and wind load of a three-element Yagi array.

Antennas RF Part Context

This component belongs to the YS series of antennas from TE Connectivity, specifically engineered for VHF/UHF applications. The YS8063 variant targets specific regulatory bands used in public safety and industrial communications, providing a robust solution for fixed-site installations requiring focused radiation patterns.

Antennas RF Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model.
