YS8963 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 933MHZ YAGI N FEM BRKT MT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for YS8963
- Description：RF ANT 933MHZ YAGI N FEM BRKT MT
- Series：-
- Mfr：TE Connectivity
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：933MHz
- Frequency Range：896MHz ~ 970MHz
- Antenna Type：Yagi, 3-Element
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：6dBd
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：16.732" (425.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for YS8963
Antennas RF Overview

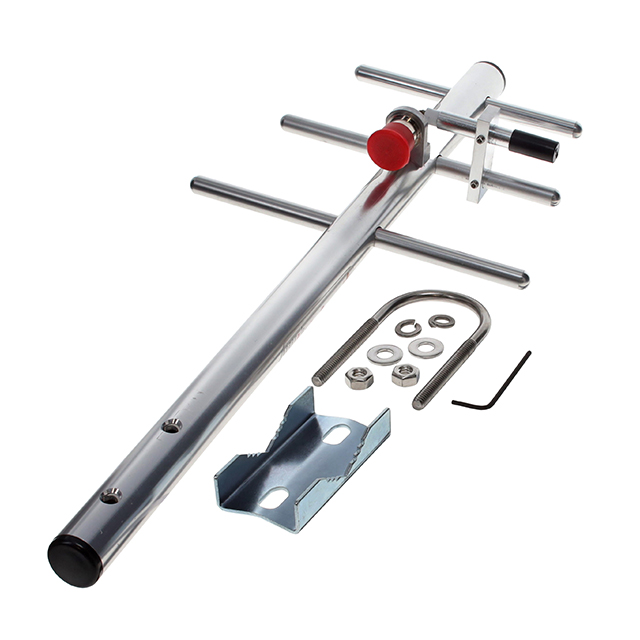

The YS8963 is a three-element Yagi antenna manufactured by TE Connectivity, designed for outdoor applications within the 896 MHz to 970 MHz frequency range. It features a center frequency of 933 MHz and provides a gain of 6 dBd with a Voltage Standing Wave Ratio (VSWR) of 1.5. The antenna utilizes an N-type female connector for interfacing and is constructed with stainless steel materials. Its maximum height measures 425.00 mm, and it supports bracket mounting configurations.
Antennas RF Feature Summary
- Three-element Yagi design optimized for directional signal transmission
- Stainless steel construction suitable for outdoor environmental conditions
- Bracket mounting configuration for secure installation
Antennas RF Applications
- LTE network infrastructure
- Public Safety Land Mobile Radio (LMR)
- Sigfox IoT connectivity
- LoRaWAN deployments
Antennas RF Procurement Notes
Verify current availability status directly with authorized distributors or TE Connectivity sales representatives, as supply chain conditions may vary. Confirm that the specific order includes all necessary mounting hardware if not explicitly listed in the standard packaging documentation. Ensure compliance with regional radio frequency regulations applicable to the 896-970 MHz band before deployment.
Antennas RF Selection Notes
Select this component when a high-gain directional solution is required for UHF frequencies between 896 MHz and 970 MHz. The Yagi format is appropriate for point-to-point or point-to-multipoint links where spatial filtering is beneficial. Consider the physical dimensions and wind load requirements associated with the 425 mm height during structural planning.
Antennas RF Part Context
This model belongs to the outdoor antenna product line from TE Connectivity, specifically targeting cellular and specialized wireless communication bands. It complements other passive RF components by providing focused coverage in the sub-GHz spectrum. The design aligns with industry standards for robust outdoor RF installations requiring reliable performance in public safety and industrial IoT sectors.
Antennas RF Replacement Considerations
No publicly confirmed substitute part numbers are available in the provided documentation. Evaluate alternative antennas based on matching frequency ranges, gain specifications, and connector types if replacement is necessary.
