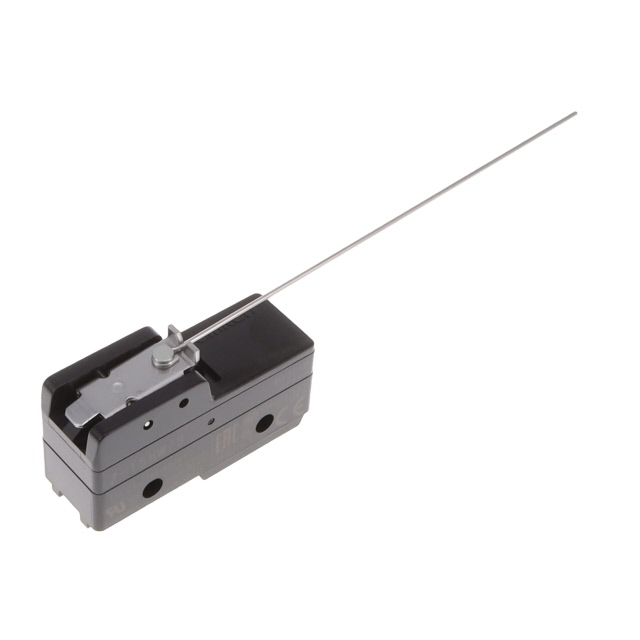

Limit Switches Z-15HW78 product image

Z-15HW78

$17.69

Description：SWITCH SNAP ACTION SPDT 10A 125V
Series：Z
Mfr：Omron Automation and Safety
Package：Tray

SKU:8286fd9b53cc Category: Limit Switches Brand: Omron Automation and Safety

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Z-15HW78 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is SWITCH SNAP ACTION SPDT 10A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for Z-15HW78

Description：SWITCH SNAP ACTION SPDT 10A 125V
Series：Z
Mfr：Omron Automation and Safety
Package：Tray
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：10A (AC/DC)
Voltage Rating - AC：125 V
Actuator Type：Wire Lever
Mounting Type：Chassis Mount
Termination Style：Solder Lug
Ingress Protection：IP00
Features：-
Operating Force：3.997gf
Release Force：0.300gf
Operating Position：0.787" (20.0mm)
Pretravel：0.394" (10.0mm)
Differential Travel：0.118" (3.0mm)
Overtravel：0.235" (6.0mm)
Operating Temperature：-25°C ~ 80°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for Z-15HW78

Z-15HW78
