Product Detailed Parameters
- Description：FERRITE BEAD 1 KOHM 0201 1LN
- Series：Z-SMS
- Mfr：KEMET
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：1
- Impedance @ Frequency：1 kOhms @ 100 MHz
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：0201 (0603 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.013" (0.33mm)
- Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
- Features：-
Download product information
Overview

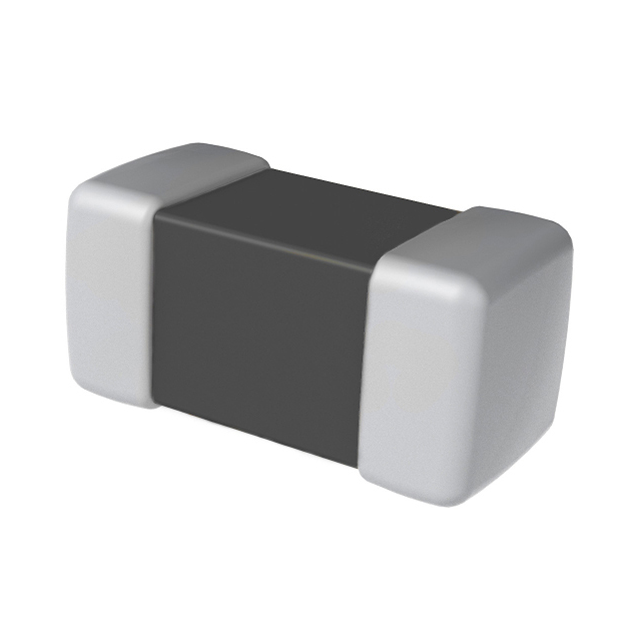

The KEMET Z0201C102GSMST is a surface-mount ferrite bead from the Z-SMS series, designed for high-frequency noise suppression in compact electronic circuits. It features a 0201 (0603 metric) package with an impedance of 1 kOhm at 100 MHz. The component supports a maximum current rating of 130 mA and exhibits a DC resistance of 2.5 Ohms with a tolerance of ±25%. It operates reliably within a temperature range of -55°C to +125°C.
Feature Summary
- Provides effective electromagnetic interference filtering through high impedance characteristics
- Utilizes a compact 0201 surface-mount footprint for space-constrained designs
- Maintains stable performance across a wide industrial temperature range
Applications
- High-speed data line signal integrity protection
- RF circuit noise attenuation
- Power supply input filtering for sensitive ICs
Procurement Notes
Verify the specific impedance value and current rating against the official KEMET datasheet before integration. Confirm that the 0201 package dimensions align with the target PCB land pattern. Ensure the selected supplier provides traceable documentation for the Z-SMS series to guarantee material consistency and compliance with RoHS standards.
Selection Notes
Select this component when minimal board area is available and moderate current handling is required. The 1 kOhm impedance offers significant attenuation for high-frequency noise without excessive voltage drop. Consider the 130 mA current limit to prevent saturation during peak load conditions. The low DC resistance helps maintain power efficiency in critical signal paths.
Part Context
This ferrite bead belongs to KEMET's Z-SMS series, which specializes in miniature components for advanced consumer and industrial electronics. The series addresses the industry trend toward miniaturization while maintaining robust noise suppression capabilities. It complements other passive components in complex multi-layer ceramic assemblies.
Replacement Considerations
Check for direct substitutes within the Z-SMS family or equivalent 0201 ferrite beads from other manufacturers. Verify that alternative parts match the 1 kOhm impedance and 130 mA current specifications to ensure circuit compatibility.
