Product Detailed Parameters
- Description：FERRITE BEAD 100 OHM 0603 1LN
- Series：Z-PMS
- Mfr：KEMET
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：1
- Impedance @ Frequency：100 Ohms @ 100 MHz
- Current Rating (Max)：1.7A
- DC Resistance (DCR) (Max)：50mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 85°C
- Package / Case：0603 (1608 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.037" (0.95mm)
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Features：-
Download product information
Overview

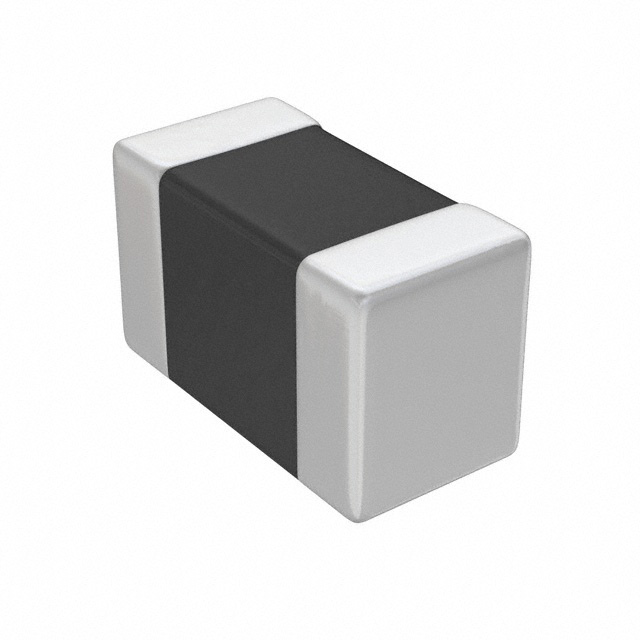

The KEMET Z0603C101APMST is a single-line ferrite chip bead in a 0603 (1608 metric) surface-mount package. It provides an impedance of 100 Ohms at 100 MHz with a maximum DC resistance of 50 milliohms and a rated current of 1.7 Amperes. The component operates within a temperature range of -55°C to +85°C. This part belongs to the Z-PMS series and is classified as obsolete, indicating it is no longer in active production by the manufacturer.
Feature Summary
- Provides electromagnetic interference suppression through high impedance characteristics at target frequencies
- Designed for surface-mount assembly on printed circuit boards
- Constructed for use in power line filtering applications
Applications
- Power line filtering in embedded systems
- Electromagnetic interference suppression in industrial automation equipment
- Signal integrity management in general electronic circuits
Procurement Notes
This component is officially listed as obsolete and has been discontinued by KEMET. Procurement is restricted to remaining stock from distributors or secondary markets. Verify authenticity and storage history carefully due to the end-of-life status. Availability is not guaranteed, and lead times may vary significantly depending on supplier inventory levels.
Selection Notes
Designers should consider this part only if existing legacy designs require exact replacement. Due to the obsolete status, alternative components with similar electrical specifications and package dimensions must be evaluated for new developments. Ensure that any substitute meets the required impedance, current rating, and thermal performance criteria for the specific application environment.
Part Context
The Z0603C101APMST is part of KEMET's Z-PMS series of ferrite beads. These components are engineered for noise suppression in compact electronic assemblies. The 0603 footprint allows for dense board layouts. As an obsolete item, it represents a previous generation of passive filtering solutions now superseded by newer product lines within the manufacturer's portfolio.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Designers must identify equivalent ferrite beads based on impedance, current rating, and package size from other manufacturers or newer KEMET series.
