Product Detailed Parameters
- Description：FERRITE BEAD 100 OHM 0603 1LN
- Series：Z-PWZ
- Mfr：KEMET
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：1
- Impedance @ Frequency：100 Ohms @ 100 MHz
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：35mOhm
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Package / Case：0603 (1608 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.035" (0.90mm)
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Features：-
Download product information
Overview

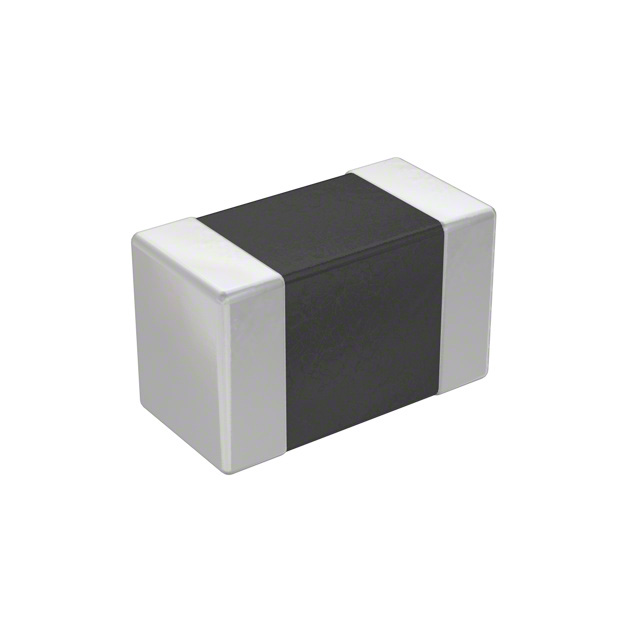

The KEMET Z0603C101BPWZT is a ferrite chip bead in the Z-PWZ series, designed for surface mount applications. It features a 0603 (1608 metric) package with an impedance of 100 ohms and a maximum DC current rating of 2 amperes. The component has a tolerance of 25% and a maximum DC resistance of 35 milliohms. It operates within a temperature range of -40°C to +125°C.
Feature Summary
- Provides electromagnetic interference suppression through high-impedance characteristics at target frequencies.
- Supports high-current signal paths with a rated capacity of 2 amperes.
- Utilizes a compact surface-mount footprint suitable for dense circuit board layouts.
Applications
- High-speed data line filtering
- Power supply noise attenuation
- Signal integrity enhancement in digital circuits
Procurement Notes
Verify component authenticity and datasheet alignment before integration. Confirm that the specified impedance and current ratings match design requirements. Check for end-of-life status as indicated by manufacturer notices. Ensure storage conditions comply with moisture sensitivity levels. Validate RoHS compliance documentation for regulatory adherence.
Selection Notes
Select this component when a 100-ohm impedance is required for noise suppression in 0603 footprints. Consider the 2A current rating for power handling capabilities. Evaluate the 35 milliohm DC resistance for voltage drop constraints. Compare thermal performance against the -40°C to +125°C operating range. Assess compatibility with surface-mount assembly processes.
Part Context
This ferrite bead belongs to KEMET's Z-PWZ series, which focuses on general-purpose EMI suppression. The 0603 size offers a balance between performance and space efficiency. It serves as a passive component for filtering high-frequency noise in electronic systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify cross-reference availability through official manufacturer channels or authorized distributors before substitution.
