Z0805C600APMST

Overview

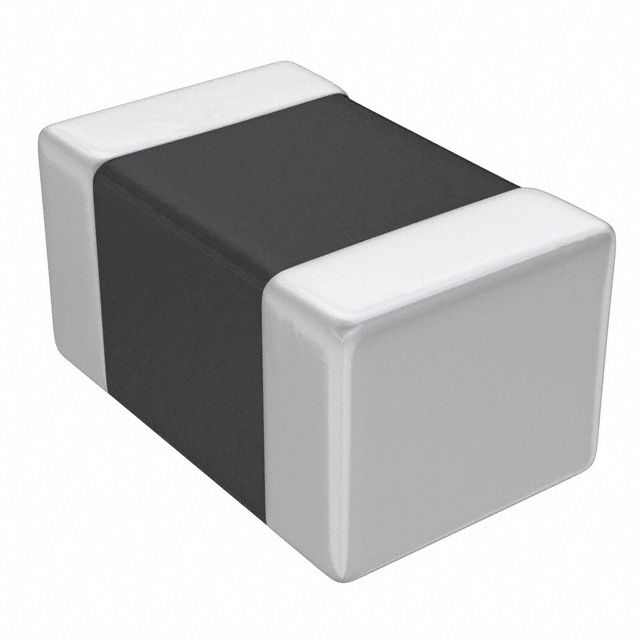

The KEMET Z0805C600APMST is a surface-mount ferrite bead designed for electromagnetic interference suppression in high-current applications. It features a single-line configuration with a nominal impedance of 60 ohms at the standard test frequency. The component supports a maximum DC current rating of 3000 mA, ensuring stable performance under significant load conditions. It utilizes a 0805 (2012 metric) package size to facilitate compact circuit board layouts. The device exhibits a low direct current resistance of 25 milliohms, minimizing power loss and voltage drop within the signal or power path.

Feature Summary

• Provides effective high-frequency noise attenuation through controlled impedance characteristics
• Capable of handling high continuous DC currents without saturation
• Low series resistance preserves signal integrity and reduces thermal generation

Applications

• High-speed data line filtering in portable electronics
• Power supply output decoupling for integrated circuits
• EMI suppression in automotive infotainment systems

Procurement Notes

Verify the specific impedance tolerance and DC current ratings against the official datasheet before integration. Confirm that the 0805 package dimensions align with the target PCB footprint. Ensure the operating temperature range meets the environmental requirements of the final assembly. Cross-reference the manufacturer part number to avoid confusion with similar impedance values.

Selection Notes

Select this component when circuit design requires substantial current handling alongside moderate RF attenuation. The low DCR makes it suitable for power rails where efficiency is critical. Evaluate the impedance curve to ensure noise frequencies fall within the effective suppression band. Consider the physical size constraints of the application when choosing between this and smaller packages.

Part Context

This ferrite bead belongs to KEMET's broad portfolio of passive components focused on signal integrity and power management. Ferrite beads are essential for mitigating conducted emissions in modern electronic devices. The 0805 form factor balances current capacity with space efficiency, making it a common choice for consumer and industrial hardware designs requiring reliable EMI control.

Replacement Considerations

Consult the official KEMET substitution guide for verified equivalents. Ensure any alternative maintains the 60-ohm impedance and 3A current capability. Verify package compatibility and electrical characteristics match the original design specifications.
