Z1206C501BPWZT

Overview

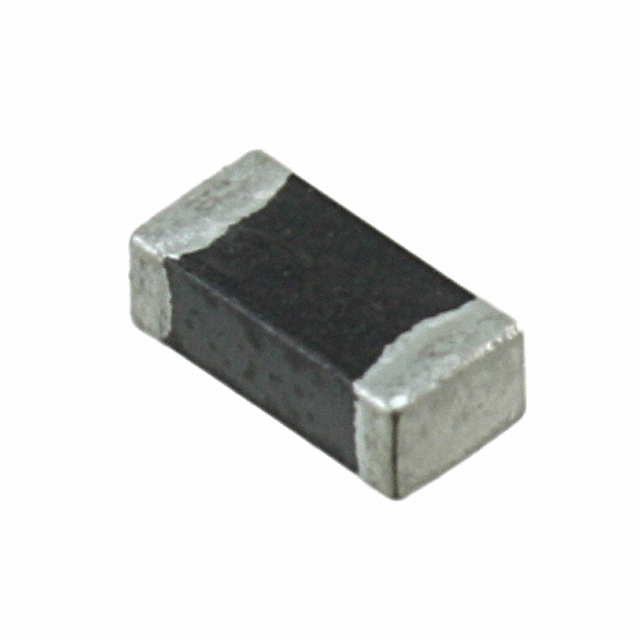

The KEMET Z1201C501BPWZT is a single-line ferrite chip bead designed for surface-mount technology in the 1206 case size. It provides an impedance of 500 Ohms at 100 MHz with a maximum DC resistance of 70 milliohms and a current rating of 2 Amperes. This component functions as an electromagnetic interference suppression device, effectively attenuating high-frequency noise signals while maintaining low insertion loss for power lines.

Feature Summary

• Provides effective attenuation of high-frequency electromagnetic interference noise
• Maintains low DC resistance to minimize voltage drop on power lines
• Supports continuous current loads up to 2 Amperes without saturation

Applications

• High-speed data line filtering
• Power supply output noise suppression
• Clock signal integrity protection

Procurement Notes

Verify the specific suffix BPWZT against official KEMET documentation to confirm impedance characteristics and termination specifications. Ensure the procurement channel provides authentic components with traceable manufacturing dates to guarantee performance reliability in sensitive electronic assemblies.

Selection Notes

Select this component when circuit requirements demand significant impedance at 100 MHz combined with a 2A current capacity. The 1206 footprint offers a balance between thermal dissipation and board space efficiency compared to smaller packages.

Part Context

This ferrite bead belongs to KEMET's passive component portfolio, specifically engineered for signal integrity management. It complements ceramic capacitors by providing frequency-dependent resistance to suppress unwanted radio frequency interference in compact electronic devices.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
