Z1210C601BPWZT

Overview

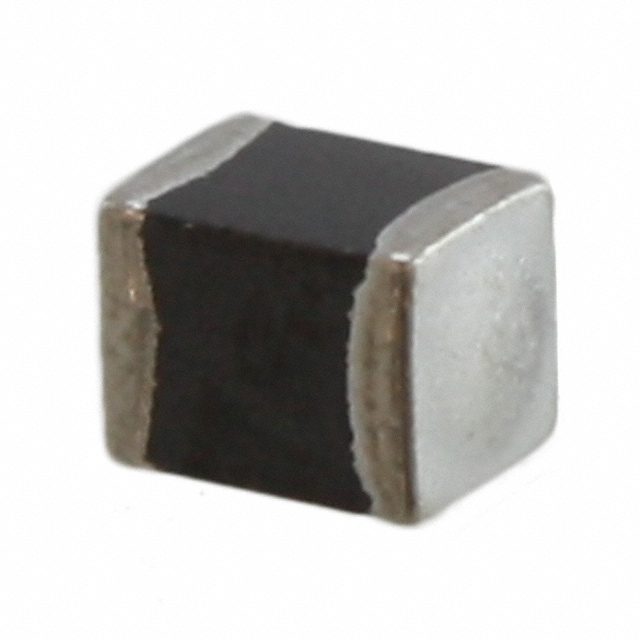

The KEMET Z1210C601BPWZT is a surface-mount ferrite bead chip designed for electromagnetic interference suppression. It features a 1210 package with dimensions of 3.2 mm by 2.5 mm and a height of 2.5 mm. The component provides an impedance of 600 ohms at 100 MHz and supports a maximum current rating of 3 amperes. It utilizes flexible terminations to enhance mechanical reliability during soldering.

Feature Summary

• Provides effective attenuation of high-frequency noise in electronic circuits
• Features flexible soft terminations to improve resistance to cracking during thermal cycling
• Designed for surface mount assembly on printed circuit boards

Applications

• Power line filtering for DC-DC converters
• Signal line noise suppression in digital circuits
• EMI suppression in automotive electronics

Procurement Notes

Verify the specific termination style and impedance tolerance against the official datasheet before ordering. Confirm that the 3A current rating meets the application requirements. Ensure the 1210 footprint matches the PCB design. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when high current handling capability is required alongside significant impedance at 100 MHz. The flexible termination option makes it suitable for applications subject to mechanical stress or thermal expansion mismatches. Compare its physical dimensions against available board space constraints.

Part Context

This ferrite bead belongs to KEMET's general-purpose EMI suppression series. It complements other passive components used for signal integrity and power quality management. The 1210 form factor allows for higher current capacity compared to smaller packages while maintaining standard mounting compatibility.

Replacement Considerations

Check for equivalent ferrite beads from other manufacturers offering 600 ohms at 100 MHz and 3A current ratings. Verify that any substitute maintains the same 1210 footprint and flexible termination characteristics to ensure mechanical compatibility.
