Product Detailed Parameters
- Description：RF FILTER BANDPASS 550MHZ MODULE
- Series：ZABP-550-S
- Mfr：Mini-Circuits
- Package：Tray
- Frequency：550MHz Center
- Bandwidth：900MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：2.2dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：2.300" L x 2.250" W (58.42mm x 57.15mm)
- Height (Max)：0.765" (19.43mm)
Download product information
Overview

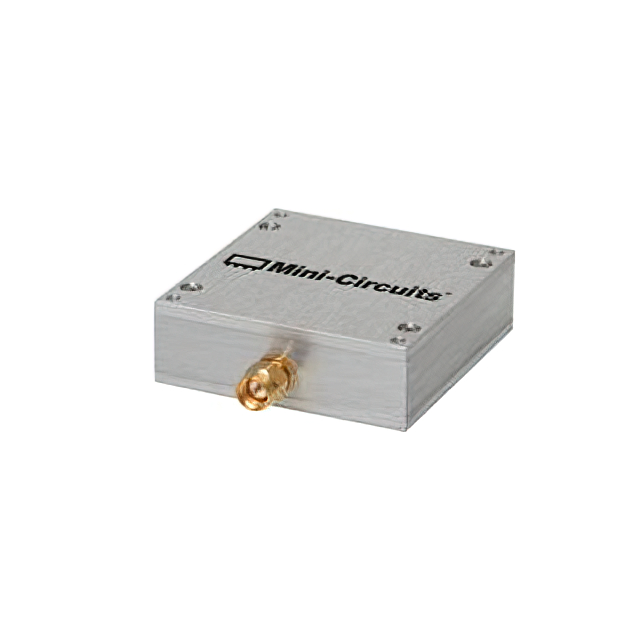

The ZABP-550-S+ is a lumped LC bandpass filter manufactured by Mini-Circuits, designed for signal conditioning applications. It features a rugged connectorized package with SMA interfaces and operates at a system impedance of 50 ohms. The device covers a passband ranging from 100 MHz to 1000 MHz, providing a bandwidth of approximately 900 MHz with a center frequency near 550 MHz. It exhibits an insertion loss of 2.2 dB and complies with RoHS and REACH standards.
Feature Summary
- Utilizes a rugged connectorized package design for durability
- Employs lumped LC technology for bandpass filtering
- Provides good impedance matching within the operational range
Applications
- RF signal conditioning
- Radio frequency systems requiring bandpass filtering
- Communication equipment operating between 100 and 1000 MHz
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required interface types and compliance standards. Confirm that the component meets all necessary regulatory requirements for your target market. Cross-reference the datasheet specifications against your system's impedance and frequency needs before procurement.
Selection Notes
Select this component when a rugged, connectorized bandpass filter is required for frequencies between 100 MHz and 1000 MHz. Ensure the application supports SMA connectors and a 50-ohm system impedance. Consider the 2.2 dB insertion loss in link budget calculations.
Part Context
This part belongs to the ZABP series of bandpass filters from Mini-Circuits. These components are engineered for robust performance in RF environments. The series offers various frequency ranges while maintaining consistent packaging and electrical characteristics suitable for general-purpose signal conditioning.
Replacement Considerations
Consult official Mini-Circuits documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and mechanical dimensions.
