ZABP-59-S+

Overview

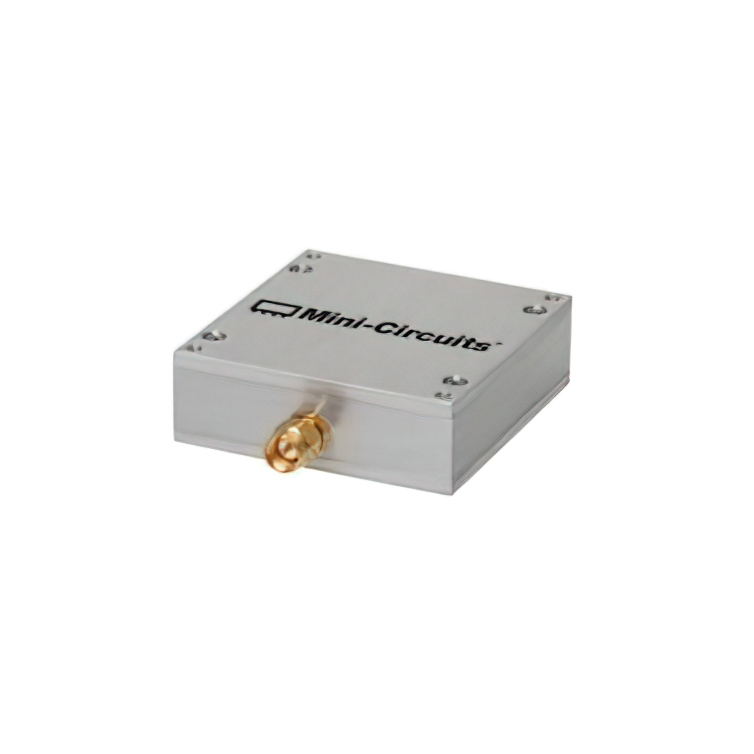

The ZABP-59-S+ is a lumped LC bandpass filter designed for signal conditioning applications. It features a center frequency of 59 MHz and a bandwidth spanning from 30 to 88 MHz. The component operates with a characteristic impedance of 50 Ohms. It utilizes SMA connectors for interface connectivity and is housed in the UU1842 rugged connectorized package style.

Feature Summary

• Lumped LC architecture for effective signal filtering
• Rugged connectorized package design
• Good impedance matching within the passband

Applications

• RF signal conditioning
• IF stage filtering
• Microwave component integration

Procurement Notes

Verify the specific datasheet version and S-parameter graphs provided by Mini-Circuits or authorized distributors to confirm performance characteristics. Ensure compatibility with 50 Ohm system requirements. Check for RoHS compliance status indicated by the '+' suffix. Confirm lead times as they may vary significantly based on manufacturer schedules.

Selection Notes

Select this component when a fixed center frequency of 59 MHz is required. The 30-88 MHz bandwidth suits applications needing rejection of out-of-band signals outside this range. The SMA interface dictates connector compatibility with existing PCB or cable assemblies. Consider the UU1842 package size for spatial constraints.

Part Context

This part belongs to the Mini-Circuits ZABP series of lumped LC bandpass filters. These components are engineered for RF, IF, and microwave frequencies up to 86 GHz. The ZABP series typically offers compact solutions for signal integrity management in communication systems.

Replacement Considerations

Consult Mini-Circuits official substitution guides for compatible alternatives. Verify that any substitute maintains the 50 Ohm impedance and SMA connector type. Ensure the replacement covers the 30-88 MHz passband without altering system performance.
