ZBSF-95-N+

Overview

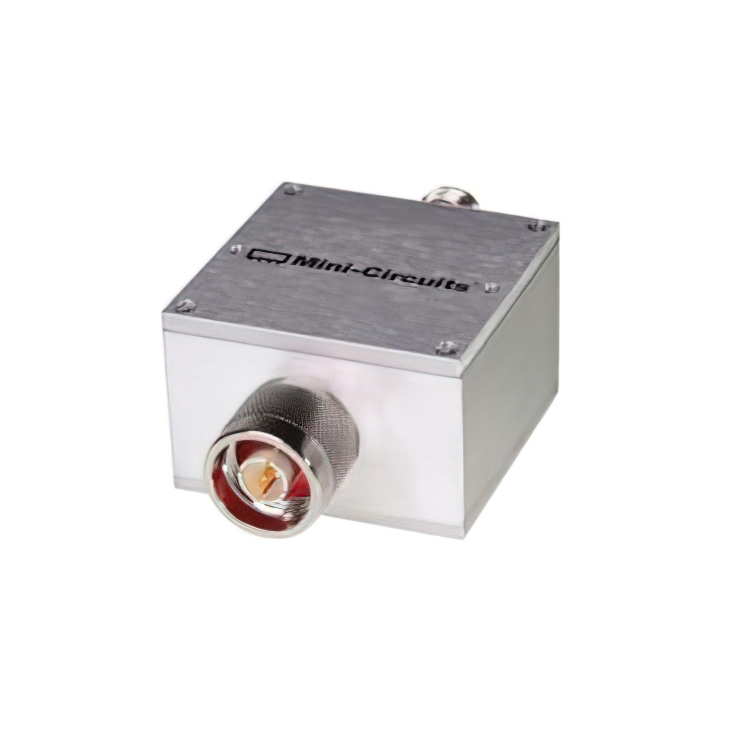

The ZBSF-95-N+ is a connectorized band stop filter manufactured by Mini-Circuits, designed for RF signal conditioning applications. It features an N-type in-line module package with dimensions of 2.000 inches in length and width, and a maximum height of 1.315 inches. The component operates at a system impedance of 50 Ohms and provides a stop band coverage from 88 MHz to 105 MHz. This configuration ensures effective attenuation within the specified frequency range while maintaining compatibility with standard N-type connectors.

Feature Summary

• Provides dedicated band stop filtering functionality within the 88 to 105 MHz range
• Constructed in a rugged connectorized package for reliable signal conditioning
• Designed for integration into RF systems requiring specific frequency rejection

Applications

• FM broadcast band interference suppression
• RF signal conditioning in communication systems
• Microwave component integration for frequency isolation

Procurement Notes

Verify that the part number suffix matches the required connector type and compliance standards. Confirm that the operating frequency range aligns with the specific application requirements. Ensure that the physical dimensions fit within the designated enclosure space. Check for RoHS and REACH compliance documentation if regulatory adherence is mandatory for the deployment environment.

Selection Notes

Select this component when a fixed band stop filter is required for the 88 to 105 MHz spectrum. Consider the N-type interface for connection compatibility with existing cabling infrastructure. Evaluate the physical size constraints against the available mounting area. Verify that the 50 Ohm impedance matches the surrounding circuit design parameters.

Part Context

This component belongs to the ZBSF series of connectorized band stop filters produced by Mini-Circuits. The series offers various frequency-specific models for different RF applications. The ZBSF-95-N+ variant specifically targets the FM broadcast band, providing a standardized solution for engineers needing precise frequency rejection in modular RF designs.

Replacement Considerations

Consult official Mini-Circuits documentation for direct substitute part numbers. Verify that any alternative component maintains identical electrical specifications and mechanical footprint. Ensure connector compatibility before implementing replacements.
