ZBSS-4G-S+

$403.73

Description：BPF, 2000 - 6000 MHZ, 50
Series：-
Mfr：Mini-Circuits
Package：Tray

SKU:de9aa11c27c5 Category: RF Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BPF, 2000 - 6000 MHZ, 50
Series：-
Mfr：Mini-Circuits
Package：Tray
Frequency：4GHz Center
Bandwidth：2GHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：2.5dB
Mounting Type：Chassis Mount
Package / Case：SMA In line Module
Size / Dimension：2.340" L x 0.598" W (59.44mm x 15.20mm)
Height (Max)：0.698" (17.74mm)

Download product information

ZBSS-4G-S+

Overview

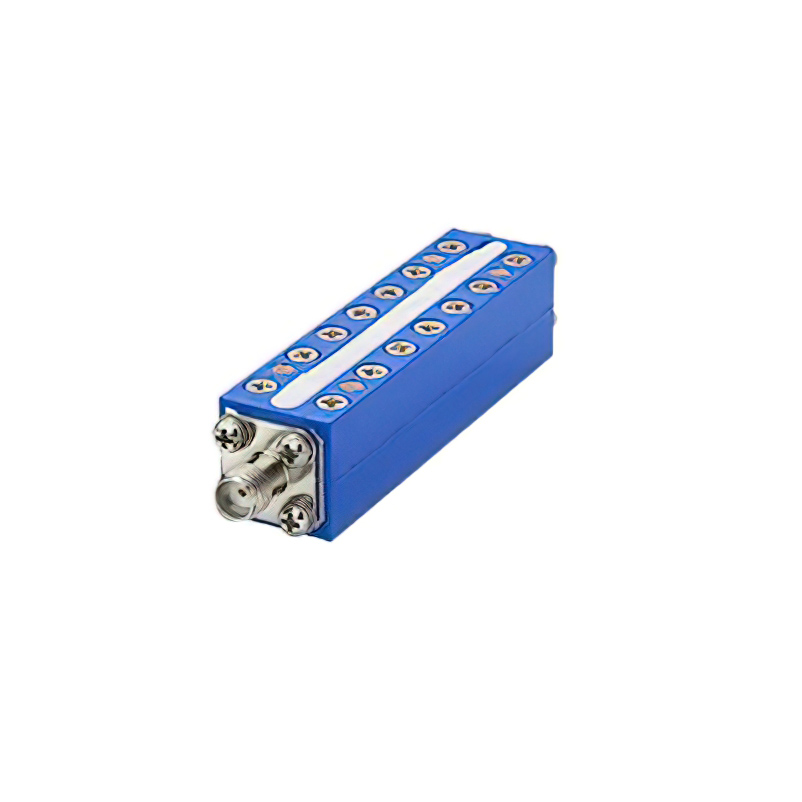

The ZBSS-4G-S+ is a suspended substrate stripline bandpass filter manufactured by Mini-Circuits. It operates within a frequency range of 2000 to 6000 MHz with a center frequency of 4 GHz and a bandwidth of 2 GHz. The component features a 50 Ohm impedance rating and an insertion loss of 2.5 dB. It utilizes SMA connectors for signal interfacing and is designed for operation across a temperature range of -40°C to +85°C.

Feature Summary

Suspended substrate stripline construction for stable RF performance
Wideband filtering capability from DC to 26 GHz in the series
Robust thermal stability suitable for industrial environments

Applications

RF sensing and connectivity layers in automotive systems
Signal conditioning in S-band upconverter assemblies
Integration into ADAS and autonomous driving radar modules

Procurement Notes

Verify part status as active before procurement. Confirm connector type matches system requirements. Ensure environmental specifications align with operational limits. Cross-reference datasheet EDU4100 for detailed electrical characteristics. Validate compliance with RoHS and REACH standards prior to integration.

Selection Notes

Select this component for applications requiring precise bandpass filtering at 4 GHz. Consider the 2.5 dB insertion loss impact on system gain. Evaluate the SMA interface compatibility with existing PCB layouts. Assess thermal management needs given the -40°C to +85°C operating range. Compare against other ZBSS models for specific bandwidth adjustments.

Part Context

This model belongs to the ZBSS series of suspended substrate stripline filters and multiplexers. The series offers components rated for 50 Ohm impedance and frequencies up to 26 GHz. Mini-Circuits designs these parts for high stability and reliability in demanding RF environments, supporting various communication and sensing technologies.

Replacement Considerations

Consult official documentation for direct substitutes. Verify frequency range and impedance matching for equivalent performance. Check connector compatibility and physical footprint constraints. Review thermal specifications to ensure adequate heat dissipation in the new configuration.
