ZCAT10D-BK

Overview

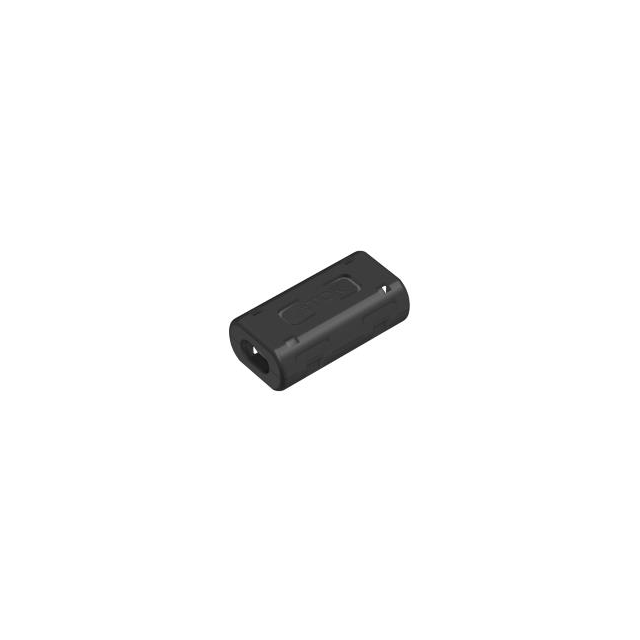

The ZCAT10D-BK is a split-core ferrite clamp designed for electromagnetic interference suppression in cable assemblies. Manufactured by TDK Corporation, this component features a black polyamide housing with an integrated locking mechanism to secure the two halves around existing cables without disconnection. It provides common-mode noise attenuation for power and signal lines.

Feature Summary

• Split-core design enables installation on terminated cables without circuit interruption
• Integrated snap-lock mechanism ensures secure closure and vibration resistance
• Ferrite core material optimized for high-frequency noise absorption

Applications

• Noise suppression for AC/DC power cords in consumer electronics
• EMI reduction for data communication cables in industrial equipment
• Common-mode choke application for internal wiring harnesses

Procurement Notes

Verify the specific part number suffix against official TDK documentation to confirm material composition and dimensional tolerances. Ensure compatibility with the target cable outer diameter range before procurement. Cross-reference the manufacturer's latest datasheet for environmental ratings and RoHS compliance status.

Selection Notes

Select based on the inner diameter required for the specific cable bundle thickness. Confirm that the operating frequency range of the ferrite material aligns with the noise spectrum requiring suppression. Consider mechanical retention needs when choosing between snap-fit and adhesive variants within the same series.

Part Context

This component belongs to TDK's ZCAT series of split-core ferrite clamps. These passive components are widely used in EMI/RFI mitigation strategies across automotive, industrial, and consumer sectors. The ZCAT series offers various sizes and materials to address different frequency bands and current carrying capacities.

Replacement Considerations

Consult TDK's official substitution guide for equivalent impedance characteristics. Verify that alternative split-core designs match the physical dimensions and locking mechanism requirements of the original assembly.
