ZCAT10D

Overview

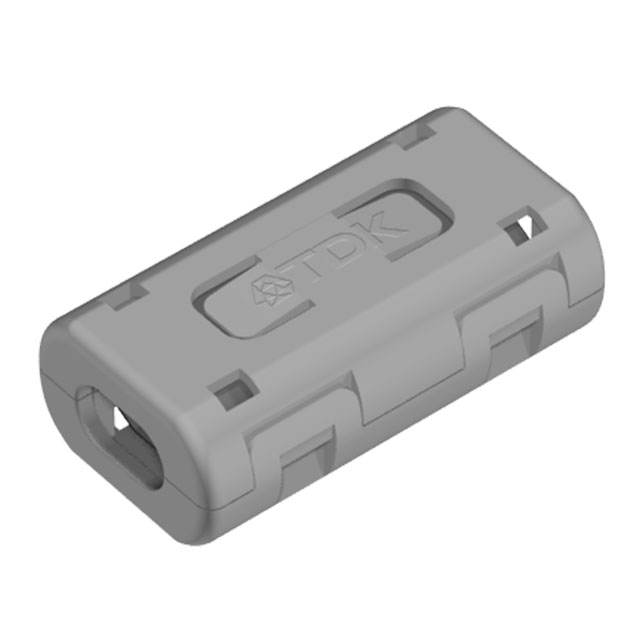

The TDK ZCAT10D is a hinged snap-on ferrite core designed for electromagnetic interference suppression. It features a unique plastic case with a self-holding mechanism to prevent slippage on cables. The component operates within a temperature range of -40°C to 85°C and provides an impedance of 70 ohms at 100 MHz.

Feature Summary

• Hinged snap-on design enables simple and convenient installation without cable disconnection
• Unique plastic case includes a self-holding mechanism to prevent slippage on cables

Applications

• Suppression of electromagnetic interference (EMI) on cables
• High-frequency noise reduction on flat cables

Procurement Notes

Verify the specific part number suffix, such as ZCAT10D-BK, which denotes a flat cable type variant. Confirm that the selected unit matches the required cable dimensions and impedance specifications for the intended application. Ensure compliance with operating temperature ranges and material certifications before procurement.

Selection Notes

Select this component when rapid installation on existing cables is required. The hinged design allows placement around cables without disconnecting them. Verify compatibility with the target cable diameter or flat cable dimensions to ensure a secure fit and effective noise suppression performance.

Part Context

This component belongs to the TDK ZCAT series of split-core ferrites. These cores are engineered for easy retrofitting onto cables to mitigate high-frequency noise. The ZCAT10D specifically targets applications requiring efficient EMI suppression in compact spaces.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
