ZCAT12VN2-BK

Description：FERRITE CORE 140 OHM HINGED
Series：ZCAT-V
Mfr：TDK Corporation
Package：Tray

SKU:f204c008483d Category: Cable Ferrites Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE CORE 140 OHM HINGED
Series：ZCAT-V
Mfr：TDK Corporation
Package：Tray
Type：Round
Design：Hinged (Snap On)
Impedance @ Frequency：140Ohm @ 100MHz
Material：-
Inner Dimension：0.492" Dia (12.50mm)
Outer Dimension：1.071" W x 1.228" H (27.20mm x 31.20mm)
Ratings：AEC-Q200
Mounting Type：Free Hanging
Length：1.362" (34.60mm)

Download product information

ZCAT12VN2-BK

Overview

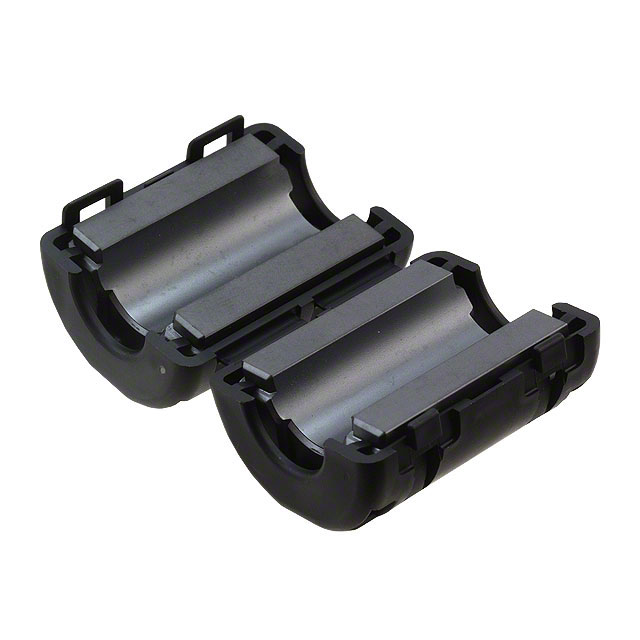

The ZCAT12VN2-BK is a hinged ferrite clamp-on core manufactured by TDK Corporation, designed for data line filtering applications. It features a snap-on mounting type and free-hanging configuration. The component provides an impedance of 140 Ohms at 100MHz. The inner dimension is specified as 0.492 inches (12.50mm) diameter. The product falls under the category of cable ferrites and is rated AEC-Q200.

Feature Summary

Hinged snap-on design for easy installation on cables
Reduces conducted EMI and common-mode noise
Free-hanging mounting type

Applications

Data line filtering
Power supply noise suppression
Battery charger harness protection
Portable device cable shielding

Procurement Notes

Verify the exact part number suffix against official TDK documentation to ensure correct impedance and dimensional specifications. Confirm environmental compliance status such as RoHS details directly with the manufacturer or authorized distributors before procurement. Check lead times and availability through verified supply channels.

Selection Notes

Select this component when a snap-on ferrite core is required for cables with an inner diameter up to 12.50mm. Ensure the application requires 140 Ohms impedance at 100MHz for effective common-mode noise reduction. Verify that the free-hanging mounting style fits the physical constraints of the assembly.

Part Context

This part belongs to the ZCAT-V series of cable ferrites from TDK. These cores are engineered for suppressing electromagnetic interference in electronic equipment. The ZCAT12VN2-BK variant specifically offers a hinged design for convenient retrofitting or installation without disconnecting cables.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult TDK technical support or authorized distributor catalogs for equivalent components with matching impedance and dimensional requirements.
