ZCAT2032-0930

Overview

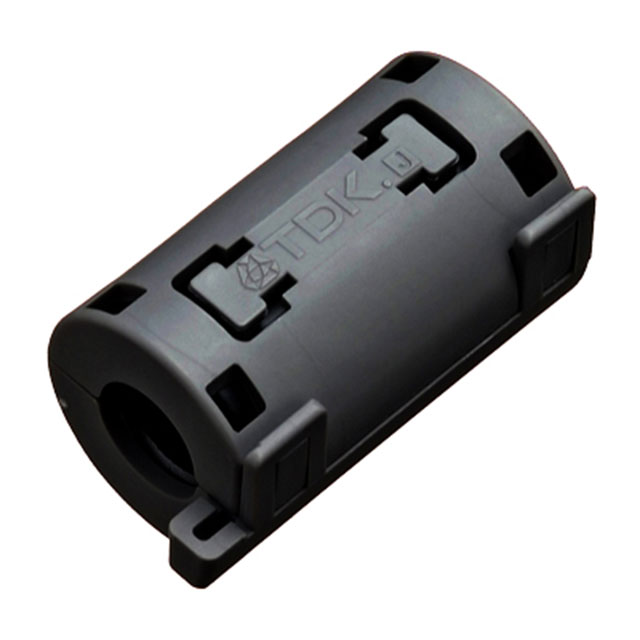

The TDK ZCAT2032-0930 is a hinged ferrite clamp core designed for suppressing electromagnetic interference on round cables. It features a unique plastic case with a self-holding mechanism to prevent slippage during installation. The component has an inner diameter of 9 mm, an outer diameter of 20 mm, and an external length of 32 mm. It operates within a temperature range of -40°C to +85°C. The ferrite material provides high impedance in the 10 MHz to 500 MHz frequency band, effectively attenuating common-mode noise without affecting signal integrity.

Feature Summary

• Hinged design allows for easy installation onto existing cable assemblies without cutting or stripping wires.
• Self-holding mechanism secures the clamp firmly to the cable to prevent accidental slippage.
• Ferrite material offers effective attenuation of common-mode electromagnetic interference across high-frequency ranges.

Applications

• Suppression of electromagnetic interference in computer peripheral cables
• Noise reduction for digital telephone lines
• EMI filtering for audio equipment wiring
• Interference mitigation in video game console connections

Procurement Notes

Verify that the ordered part matches the exact model number ZCAT2032-0930 to ensure correct dimensions and impedance characteristics. Confirm compliance with RoHS and REACH regulations if required by your project specifications. Check for original manufacturer packaging to guarantee product authenticity and performance consistency. Ensure the cable diameter does not exceed the 9 mm inner diameter specification for proper fitment.

Selection Notes

Select this component when retrofitting EMI suppression onto finished cable assemblies is necessary. The hinged structure is ideal for applications where disassembly is not feasible. Ensure the target cable diameter fits within the 9 mm aperture. Verify that the operating environment remains within the specified -40°C to +85°C temperature range for optimal magnetic performance.

Part Context

This component belongs to the TDK ZCAT series of clamp filters. These products are engineered specifically for cable applications requiring convenient installation and reliable noise suppression. The series utilizes specialized ferrite materials to provide high impedance values in critical frequency bands, making them suitable for various electronic devices sensitive to electromagnetic disturbances.

Replacement Considerations

Direct replacements must match the 9 mm inner diameter, 20 mm outer diameter, and 32 mm length. Ensure substitute parts offer comparable impedance characteristics at 100 MHz and maintain the same hinged mechanical design for equivalent installation ease.

FAQ

Does the ZCAT2032-0930 affect differential mode signals?

No, the ferrite core is designed to suppress common-mode noise and does not adversely affect the quality of differential mode signals passing through the cable.

What is the maximum cable diameter this clamp can accommodate?

The clamp has an inner diameter of 9 mm, so it is suitable for cables with a diameter up to 9 mm.
