ZCAT2035-0930A-BK

Overview

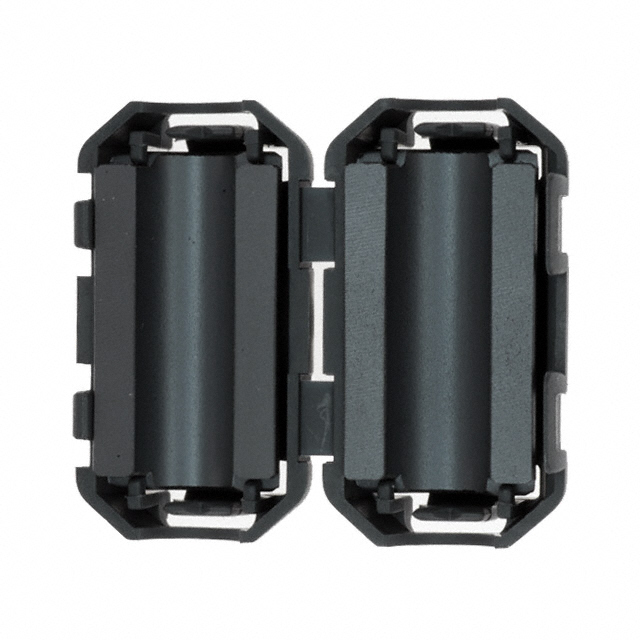

The TDK ZCAT2035-0930A-BK is a fixed cable-type ferrite clamp filter designed for electromagnetic interference suppression. It features a round black housing with an internal diameter of 9.1 mm, accommodating cables from Φ6mm to Φ9mm. The unit measures 19.5 mm in outer width and 35 mm in external length. Operating within a temperature range of -40°C to +85°C, it provides minimum impedance values of 50Ω between 10–100 MHz and 100Ω between 100–500 MHz. This component effectively mitigates common mode noise on cables without affecting signal integrity.

Feature Summary

• Clamp-on design allows installation directly onto existing cables without disassembly or soldering
• Effective mitigation of common mode noise while preserving signal quality
• Robust ferrite core material optimized for high-frequency EMI suppression

Applications

• Industrial control equipment EMC整改
• New energy power systems
• AI server cabling
• Medical electronic devices

Procurement Notes

Verify the specific suffix BK against official TDK documentation to confirm color and housing specifications. Ensure the selected part number matches the required cable diameter range of 6mm to 9mm. Cross-reference impedance curves at target frequencies with application requirements. Confirm RoHS and REACH compliance status through the manufacturer's current datasheet before finalizing procurement orders.

Selection Notes

Select this model when retrofitting EMI suppression onto finished cable assemblies where space constraints prevent traditional core installation. The 9mm aperture suits standard communication and power cables. Consider the operating temperature range for environmental suitability. Evaluate impedance performance across the specific frequency spectrum of the interference source to ensure adequate attenuation levels are achieved.

Part Context

This component belongs to the TDK ZCAT series of clamp filters. These products are engineered for rapid deployment on cables to address electromagnetic compatibility issues. The series offers various aperture sizes to accommodate different cable diameters, providing a flexible solution for noise reduction in diverse electronic applications without requiring circuit board modifications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and impedance characteristics if considering alternative brands.
