ZCAT2035-0930A

Overview

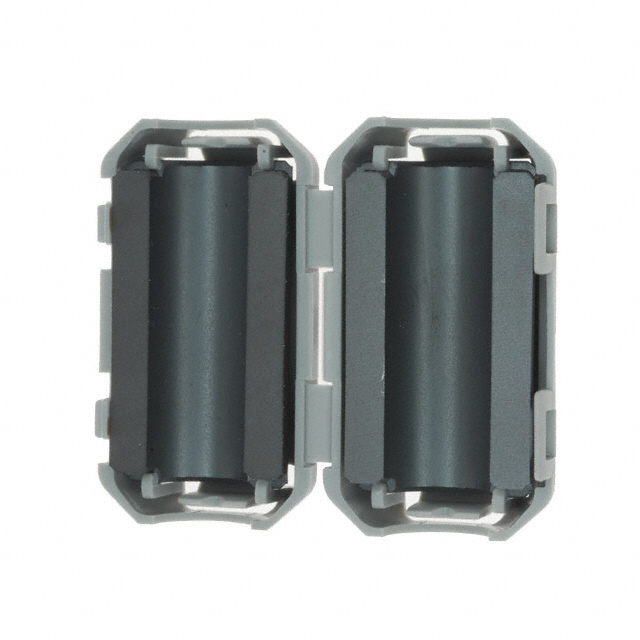

The TDK ZCAT2035-0930A is a round ferrite clamp-on core designed for EMI suppression on cables with diameters from Φ6mm to Φ9mm. It features a unique plastic case with a self-holding mechanism for secure installation without tools. The component operates within a temperature range of -40°C to +85°C and complies with RoHS and REACH standards. Impedance values include 50Ω at 25MHz, 50Ω at 50MHz, 80Ω at 100MHz, 100Ω at 300MHz, and 100Ω at 500MHz.

Feature Summary

• Integrated plastic housing with a self-holding mechanism prevents slippage during operation
• Tool-free snap-fit design enables rapid installation on existing cable assemblies
• Effective common mode noise suppression preserves signal integrity

Applications

• Power supply unit output cabling
• Communication data line interference mitigation
• Industrial control equipment wire harness filtering

Procurement Notes

Verify the specific impedance profile required for your application against the datasheet specifications. Confirm that the target cable diameter falls within the specified Φ6mm to Φ9mm range to ensure proper fit and performance. Check for compliance requirements such as RoHS and REACH if applicable to your region or industry standards.

Selection Notes

Select this model when retrofitting EMI filters onto finished cable assemblies is necessary. The clamp-on design eliminates the need to cut wires or modify PCB layouts. Ensure the operating environment stays within the -40°C to +85°C thermal limits. Consider the physical dimensions to verify clearance in tight enclosures.

Part Context

This component belongs to the TDK ZCAT series of fixed cable type ferrite cores. These are engineered for high-frequency noise reduction in electronic systems. The series offers various sizes and materials to match different cable diameters and frequency requirements.

Replacement Considerations

The variant ZCAT2035-0930A-BK shares identical electrical characteristics but differs in packaging or color coding. Verify mechanical compatibility before substitution.
