ZCAT2235-1030A

Overview

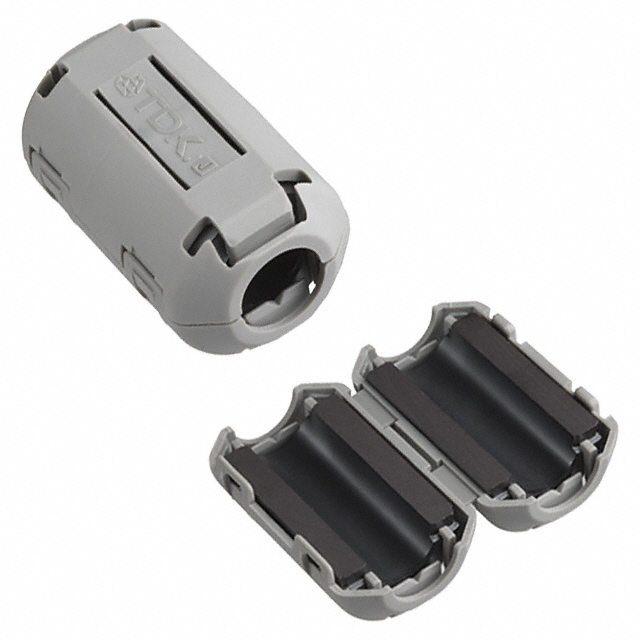

The TDK ZCAT2235-1030A is a fixed cable type ferrite clamp filter designed for electromagnetic interference suppression. It features an outer diameter of 21.5mm and a length of 35mm, accommodating cables with diameters between Φ8mm and Φ10mm. The component utilizes TDK's unique integrated structure where the ferrite core is mounted within a case. It operates within a temperature range of -40°C to +85°C and provides impedance values of 50Ω at 10–100MHz and 100Ω at 100–500MHz.

Feature Summary

• Fixed cable design with integrated ferrite core mounting for structural stability
• Clamp-on installation mechanism allowing assembly without disconnecting cable ends
• High-frequency electromagnetic noise absorption capability

Applications

• EMC absorption in industrial control systems
• Noise suppression for power and signal cables in AI servers
• Electromagnetic interference mitigation in communication equipment

Procurement Notes

Verify the specific part number ZCAT2235-1030A against official TDK documentation to confirm compatibility with target cable diameters ranging from 8mm to 10mm. Ensure that the operating environment falls within the specified -40°C to +85°C temperature range. Confirm material compliance requirements such as RoHS standards prior to final procurement decisions.

Selection Notes

Select this component when retrofitting existing cable assemblies requires non-destructive installation methods. The fixed clamp design is suitable for applications where space constraints prevent the use of through-hole cores. Ensure the target cable diameter fits within the 8mm to 10mm specification to maintain optimal magnetic coupling and impedance performance.

Part Context

This component belongs to the ZCAT series of clamp filters manufactured by TDK Corporation. These devices are engineered specifically for suppressing high-frequency electromagnetic emissions from cables. The series offers various sizes to accommodate different cable diameters while maintaining consistent material properties for effective noise reduction across broad frequency bands.

Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Generic ferrite clamps may not match the specific impedance characteristics or mechanical integration of the ZCAT series.
