ZCAT3618-2630DT

Overview

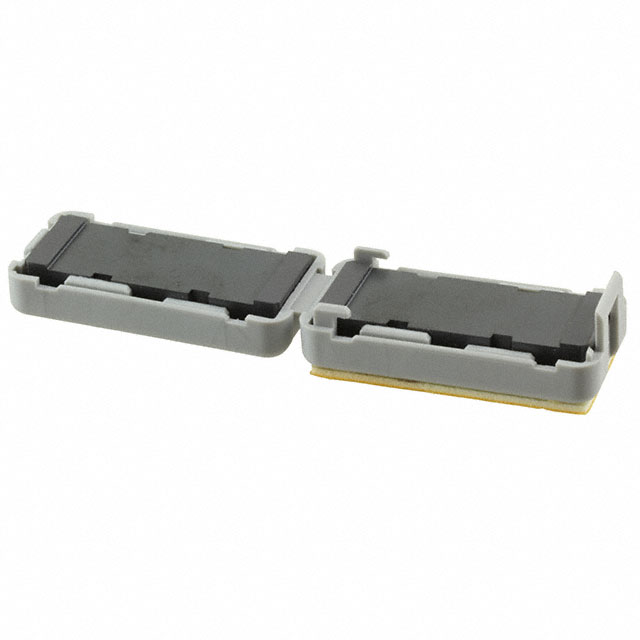

The ZCAT3618-2630DT is a hinged ferrite core from the TDK ZCAT series, designed for electromagnetic compatibility (EMC) suppression. It features a snap-on design with a single opening and an inner diameter of 26 mm. The component measures 33.5 mm in width and 11.5 mm in depth. It utilizes TDK's 30 material composition, providing an impedance of 30 ohms at 500 MHz and 150 ohms at 100 MHz. The device complies with RoHS and REACH standards.

Feature Summary

• Snap-on hinged design allows for easy installation on existing cables without disconnection.
• Utilizes specialized 30 material composition for effective high-frequency noise absorption.
• Single-opening configuration supports cable diameters up to 26 mm.

Applications

• Electromagnetic compatibility (EMC) absorption
• Noise suppression on power and signal cables
• Industrial equipment wiring protection

Procurement Notes

Verify the specific suffix 'DT' against official TDK documentation to confirm packaging details and availability status. Cross-reference the part number with authorized distributors to ensure authenticity. Check for any recent product lifecycle changes or obsolescence notices directly from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when a non-invasive solution for cable noise reduction is required. Ensure the target cable diameter fits within the 26 mm inner aperture. Consider the impedance requirements at specific operating frequencies, as the 30 material offers distinct performance characteristics compared to other compositions in the ZCAT series.

Part Context

This part belongs to the TDK ZCAT series of clip-on ferrite cores. These components are engineered for rapid deployment on wires and cables to mitigate electromagnetic interference. The ZCAT3618-2630DT specifically addresses applications requiring moderate to high impedance at frequencies around 100 MHz to 500 MHz.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult TDK technical support for direct replacements or alternative materials within the ZCAT family that match the required impedance profile and physical dimensions.

FAQ

What is the impedance value at 100 MHz?

The impedance is 150 ohms at 100 MHz.

Does this ferrite core have a notch design?

No, it features a hinged snap-on design rather than a notch style.
