Product Detailed Parameters
- Description：CMC 500MA 6LN 200 OHM SMD
- Series：ZCYS
- Mfr：TDK Corporation
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：6
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：250mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.335" L x 0.370" W (8.50mm x 9.40mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：200 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

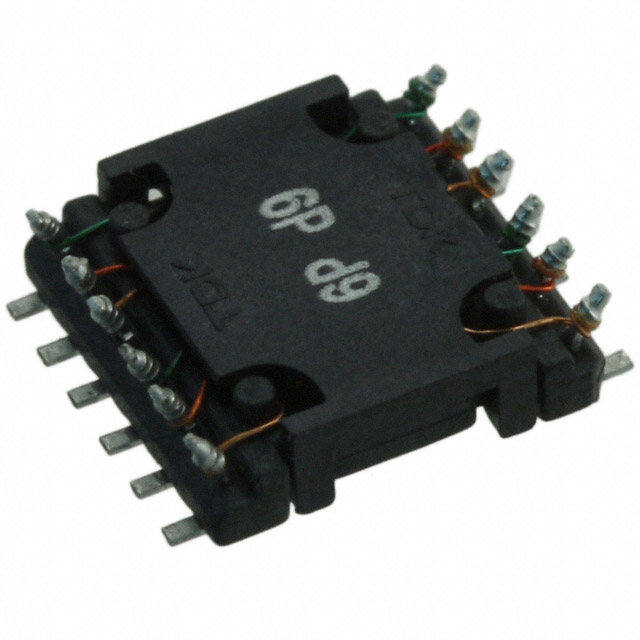

The ZCYS51R5-M6PT-01 is a surface-mount common mode choke from the TDK ZCYS series. It features six lines with an impedance of 200 Ohms at frequencies between 50MHz and 300MHz. The component supports a current rating of 500mA and has a DC resistance of 250mOhms. Designed for compact applications, it utilizes a surface mount package configuration. This filter is RoHS compliant and intended for noise suppression in high-frequency circuits.
Feature Summary
- Provides effective common mode noise attenuation across the 50MHz to 300MHz frequency range
- Compact surface mount design suitable for space-constrained PCB layouts
- Low DC resistance minimizes power loss in signal paths
Applications
- High-speed data line filtering
- USB interface noise suppression
- HDMI signal integrity enhancement
- General purpose EMI reduction in consumer electronics
Procurement Notes
Verify component availability as this part may be classified as obsolete or end-of-life by the manufacturer. Confirm current stock status through authorized distributors before finalizing procurement plans. Ensure compatibility with existing supply chain requirements and lead time expectations.
Selection Notes
Select this component when designing circuits requiring common mode noise suppression in the VHF/UHF bands. Consider the 500mA current rating and 250mOhm DCR for thermal and efficiency constraints. Evaluate footprint compatibility with the target PCB layout and ensure the impedance profile matches the specific noise frequencies present in the application.
Part Context
This component belongs to the ZCYS series of common mode chokes manufactured by TDK Corporation. The series offers various line counts and impedance values tailored for different shielding requirements. The ZCYS51R5-M6PT-01 specifically addresses applications needing moderate current handling with high-frequency attenuation capabilities in a small form factor.
Replacement Considerations
Consult official TDK documentation for direct cross-reference substitutes. Verify that alternative components match the 200 Ohm impedance, 500mA rating, and 250mOhm DCR specifications. Ensure pinout and mechanical dimensions are compatible if substituting with similar surface mount common mode filters.
