Product Detailed Parameters
- Description：CMC 500MA 8LN 100 OHM SMD
- Series：ZCYS
- Mfr：TDK Corporation
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：8
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：300mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.433" L x 0.370" W (11.00mm x 9.40mm)
- Height (Max)：0.098" (2.50mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：100 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

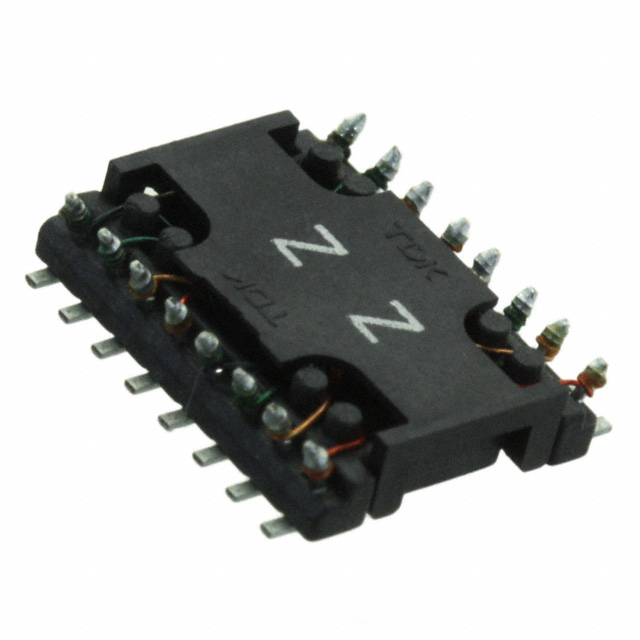

The ZCYS51R5-M8PT-01 is a surface-mount signal line filter manufactured by TDK Corporation. It operates with a voltage rating of 50V and supports a maximum current of 0.5A. The component features 16 terminals and utilizes a wire-wound construction within an SMD package measuring 11mm x 9.4mm x 2.5mm. Designed for common mode noise suppression, it integrates eight filtering functions into a compact form factor suitable for dense circuit board layouts.
Feature Summary
- Integrates eight filtering functions for comprehensive signal integrity management
- Utilizes wire-wound technology for effective common mode noise suppression
- Designed for surface mount assembly to support automated manufacturing processes
Applications
- Signal line filtering in electronic equipment
- Common mode noise reduction in data transmission circuits
- Protection of sensitive components in high-density PCB designs
Procurement Notes
Verify the complete part number including the suffix when ordering to ensure correct configuration. Confirm that the 16-terminal SMD package dimensions align with your PCB footprint requirements. Ensure the 50V and 0.5A ratings meet your system's electrical specifications before integration.
Selection Notes
Select this component when eight-channel filtering is required in a single surface-mount package. The 16-terminal design accommodates multiple signal lines efficiently. Verify that the 11mm x 9.4mm footprint fits within your available board space constraints.
Part Context
This component belongs to TDK Corporation's range of signal line filters designed for noise suppression. It serves as a specialized solution for managing electromagnetic interference in compact electronic assemblies where space efficiency and multi-line filtering capabilities are critical design requirements.
