ZFBP-2400-S+

Overview

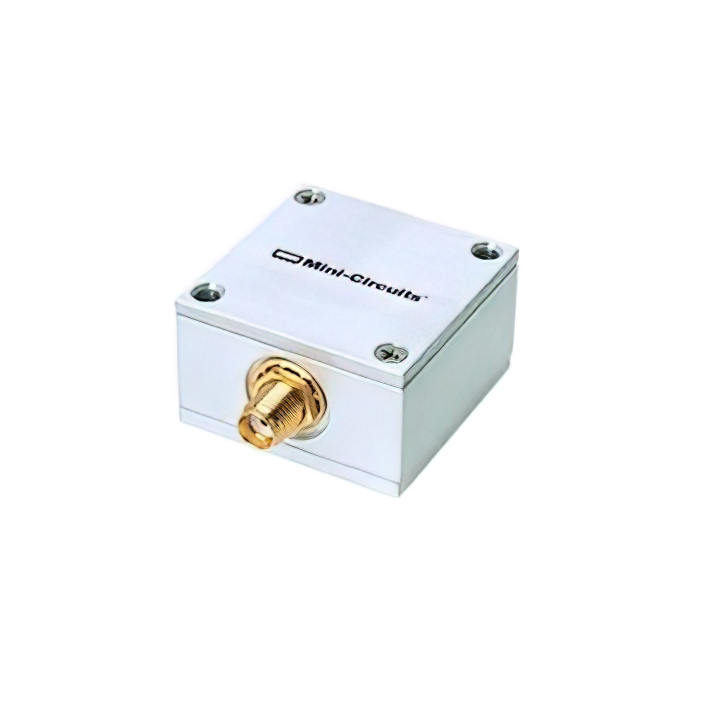

The ZFBP-2400-S+ is a narrow bandpass filter designed for RF signal conditioning applications. It operates within a frequency range of 2300 to 2500 MHz, providing a center frequency of 2400 MHz with a bandwidth of 300 MHz. The component features a 50-ohm impedance and exhibits an insertion loss of approximately 3.5 dB. Constructed in a shielded QT2302 case measuring 1.25 inches by 1.25 inches by 0.75 inches, it ensures reliable performance in demanding environments.

Feature Summary

• Shielded microstrip construction for enhanced signal integrity
• Narrow bandpass design optimized for specific frequency ranges
• Standard 50-ohm impedance compatibility

Applications

• RF signal conditioning systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the exact datasheet version from Mini-Circuits or authorized distributors to confirm current specifications. Ensure the ordering suffix matches the required package style. Cross-reference part numbers to avoid confusion with similar models like ZVBP-2400-S+. Confirm technical requirements align with the 2300-2500 MHz operational range before procurement.

Selection Notes

Select this component when a narrow bandpass response centered at 2400 MHz is required. Consider the 3.5 dB insertion loss and 50-ohm system impedance. Evaluate the physical dimensions of the shielded case against available board space. Compare performance metrics against alternative filters if stricter attenuation or bandwidth constraints exist.

Part Context

This model belongs to Mini-Circuits' line of RF bandpass filters. It utilizes microstrip technology housed in a robust shielded enclosure. The product series targets applications requiring precise frequency selection and interference rejection in the microwave spectrum.

Replacement Considerations

ZVBP-2400-S+
