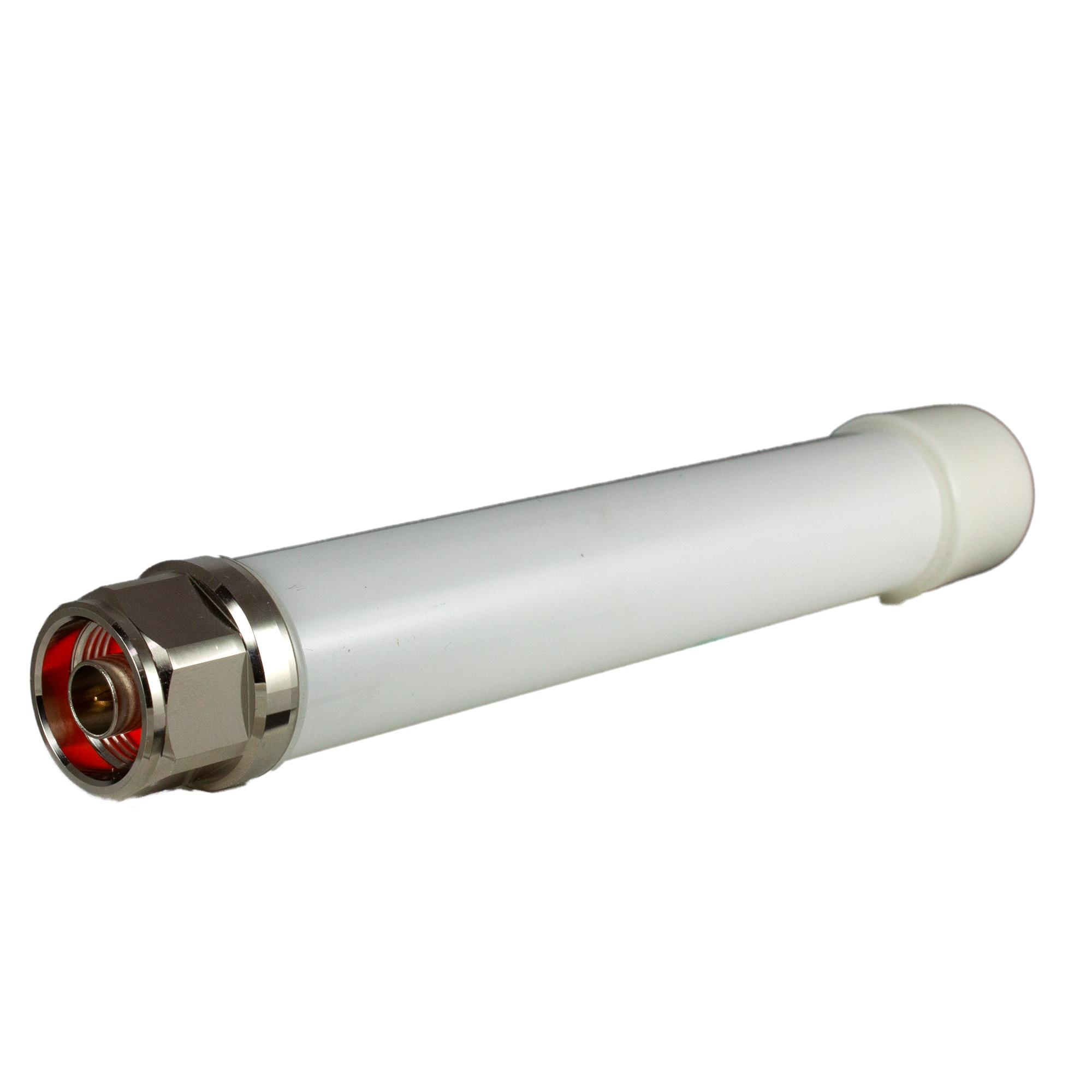

ZGX-1123NX3W is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT 5G FIBERGLASS N PLUG MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ZGX-1123NX3W
- Description：ANT 5G FIBERGLASS N PLUG MALE
- Series：1123
- Mfr：Joymax Electronics
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz
- Frequency Range：617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Fiberglass Radome
- Number of Bands：8
- VSWR：2.1, 2.5, 2.3, 3.0, 2.4, 2.0
- Return Loss：-9dB, -7.4dB, -8dB, -6dB, -7.7dB, -9.5dB
- Gain：2.7dBi, 3.4dBi, 2.2dBi, 3.6dBi, 4dBi, 4.5dBi
- Features：-
- Termination：N Type Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：5.984" (152.00mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：10 W
Antennas RF datasheet and documents for ZGX-1123NX3W
Antennas RF Overview
The Joymax Electronics ZGX-1123NX3W is a baton-style, fiberglass dipole antenna designed for outdoor cellular applications. It supports 5G NR Radio frequency bands and cellular IoT technologies including LTE-M and NB-IoT. The unit features an N Type Male Connector Mount configuration and utilizes a fiberglass radome construction suitable for external deployment environments.
Antennas RF Feature Summary
- Baton-style fiberglass dipole design
- Supports 5G NR and cellular IoT (LTE-M, NB-IoT)
- N Type Male Connector Mount
Antennas RF Applications
- 5G New Radio deployments
- Cellular IoT networks
- LTE-M connectivity
- NB-IoT infrastructure
Antennas RF Procurement Notes
Verify the specific frequency band coverage against your network requirements before purchase. Confirm that the N Type Male connector interface matches your existing cabling or equipment ports. Ensure the fiberglass radome specifications meet the environmental conditions of the intended installation site to guarantee long-term durability and signal integrity.
Antennas RF Selection Notes
Select this model when deploying outdoor cellular infrastructure requiring support for 5G NR and cellular IoT standards. The N Type Male connector is standard for robust outdoor connections. Consider the baton-style form factor for vertical mounting scenarios where space constraints are minimal but structural stability is required for wind resistance.
Antennas RF Part Context
This component belongs to Joymax Electronics' lineup of outdoor RF antennas. It is part of a series of baton-style dipole antennas engineered for cellular communications. The ZGX series specifically targets next-generation mobile networks and low-power wide-area IoT applications, providing reliable signal transmission in challenging outdoor environments.
Antennas RF Replacement Considerations
The TGX-1123NX3W is a related model from the same manufacturer but is specified for Wi-Fi frequencies (802.11ax, U-NII) rather than cellular bands. Do not substitute with Wi-Fi antennas for cellular applications due to incompatible frequency ranges. Verify exact dimensional compatibility if replacing existing hardware.
