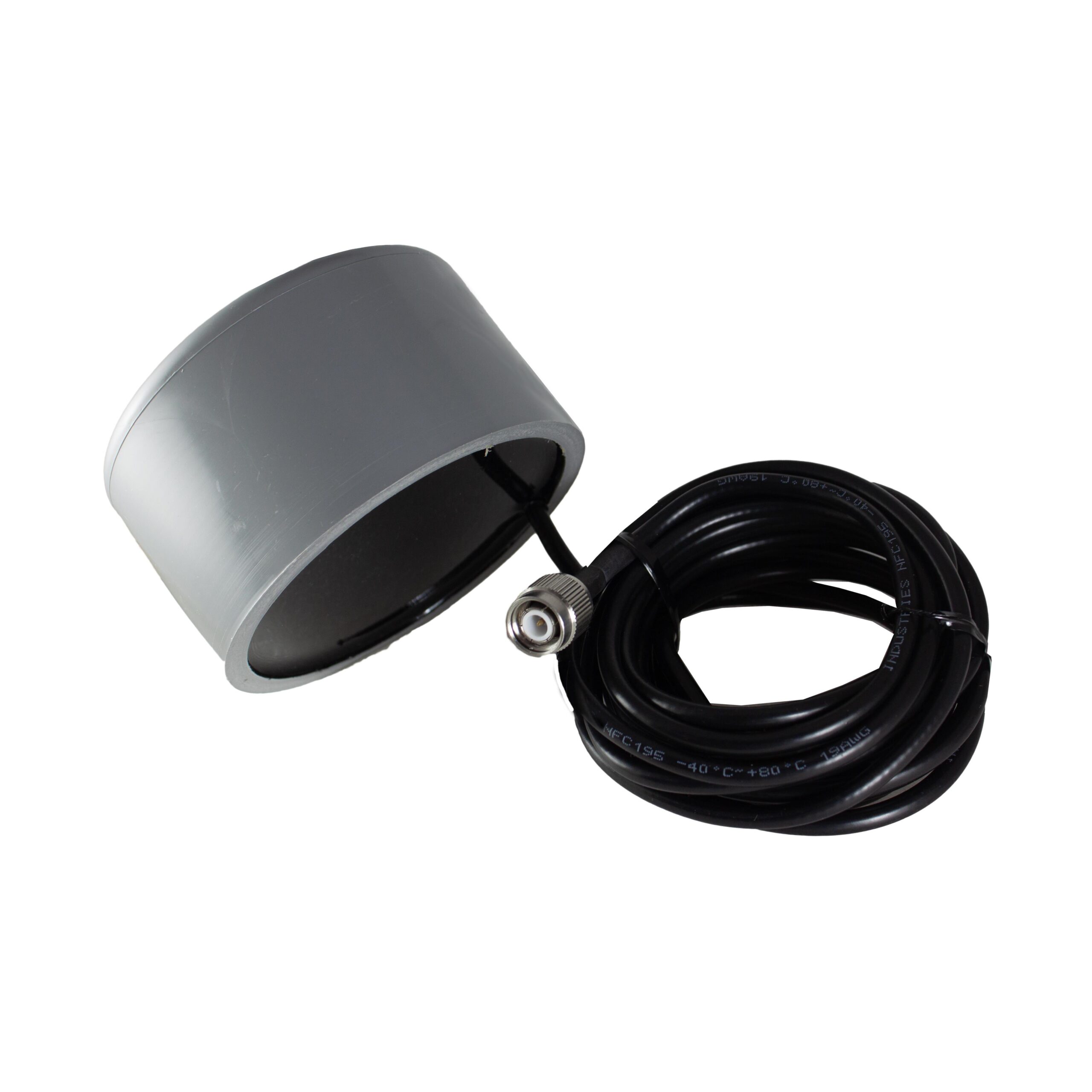

Antennas RF ZHF-HA04TC2G-Q200 product image

ZHF-HA04TC2G-Q200

$100.84

Description：ANT 5G BURIAL PUCK TNC PLUG IP67
Series：HA04
Mfr：Joymax Electronics
Package：Bag

SKU:628187aa9190 Category: RF Antennas Brand: Joymax Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ZHF-HA04TC2G-Q200 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT 5G BURIAL PUCK TNC PLUG IP67. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ZHF-HA04TC2G-Q200

Description：ANT 5G BURIAL PUCK TNC PLUG IP67
Series：HA04
Mfr：Joymax Electronics
Package：Bag
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz
Frequency Range：617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz
Antenna Type：Dome
Number of Bands：6
VSWR：4.0, 3.5, 3.7, 4.9
Return Loss：-4.4dB, -5.1dB, -4.8dB, -3.6dB
Gain：1.9, 4.3, 2.1, 2.0
Features：Cable - 2m
Termination：TNC Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：-
Height (Max)：2.165" (55.00mm)
Applications：2G, 3G, 4G, 5G, LTE
Power - Max：1 W
