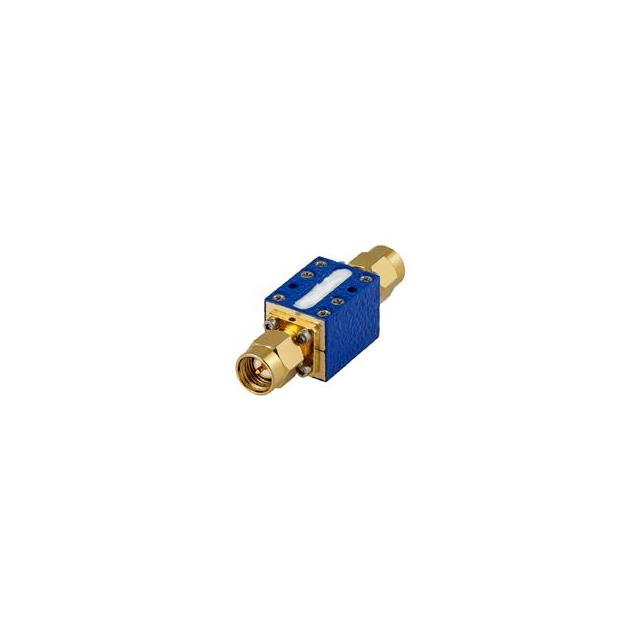

ZHSS-4G-S+

$257.99

Description：SS HPF, 4000-24000 MHZ
Series：-
Mfr：Mini-Circuits
Package：Bulk

SKU:8641d9385304 Category: RF Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SS HPF, 4000-24000 MHZ
Series：-
Mfr：Mini-Circuits
Package：Bulk
Frequency：14GHz Center
Bandwidth：20GHz
Filter Type：High Pass
Ripple：-
Insertion Loss：2dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：0.700" L x 0.500" W (17.78mm x 12.70mm)
Height (Max)：0.500" (12.70mm)

Download product information

ZHSS-4G-S+

Overview

The ZHSS-4G-S+ is a suspended substrate high-pass filter manufactured by Mini-Circuits. It operates within a frequency range of 4000 MHz to 24000 MHz. The component features SMA connectors and exhibits an insertion loss of 2 dB. It has a center frequency of 14 GHz and a bandwidth of 20 GHz. This device is designed for signal conditioning applications requiring wide stopband performance.

Feature Summary

Suspended substrate construction for enhanced performance
Wide stopband characteristics combined with low insertion loss
SMA connector interface for standard integration

Applications

Wideband instruments
ECM systems
ECCM systems
ELINT systems
Ultrabroadband systems

Procurement Notes

Verify the specific part number suffix against official Mini-Circuits documentation to ensure correct connector type and specifications. Confirm that the operating frequency range aligns with system requirements before procurement. Check for any updated datasheets or revision notices from the manufacturer to guarantee compatibility with current design standards.

Selection Notes

Select this component when a high-pass filter with a cutoff starting at 4 GHz is required. Consider its suspended substrate technology for applications demanding wide stopband rejection. Ensure the SMA connector type matches the existing board layout. Evaluate the 2 dB insertion loss against system sensitivity requirements.

Part Context

This component belongs to the ZHSS series of suspended substrate high-pass filters from Mini-Circuits. These filters are engineered for high-performance RF applications. The series offers various cutoff frequencies to suit different bandwidth needs. The ZHSS-4G-S+ specifically targets the S-band through K-band spectrum.

Replacement Considerations

Consult Mini-Circuits official substitution guides for verified alternatives. Cross-reference electrical parameters such as cutoff frequency and insertion loss. Ensure mechanical compatibility including connector type and package dimensions before replacing.
