ZHSS-8G-S+

Overview

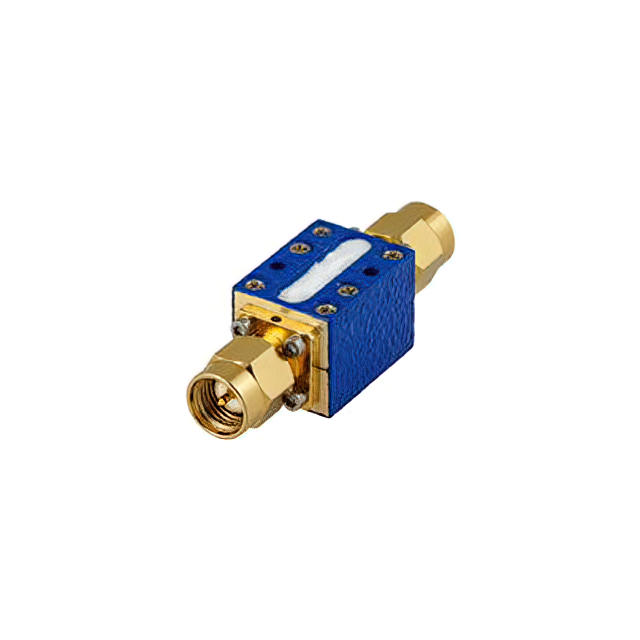

The ZHSS-8G-S+ is a suspended substrate high-pass filter manufactured by Mini-Circuits. It operates within a frequency range of 8000 MHz to 24000 MHz with a nominal impedance of 50 Ohms. The component utilizes SMA connectors for interface and is designed for high-frequency signal conditioning applications.

Feature Summary

• Suspended substrate stripline construction for enhanced performance
• High-pass filtering capability in the microwave spectrum
• RoHS and REACH compliance

Applications

• RF signal conditioning
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for precise electrical parameters such as insertion loss and return loss before integration. Confirm that the SMA connector type matches your system requirements. Ensure environmental ratings, including the maximum operating temperature of +85 C, align with your application's thermal conditions.

Selection Notes

Select this component when a high-pass filter is required between 8 GHz and 24 GHz. The 50 Ohm impedance is standard for most RF systems. Consider the suspended substrate technology for potentially superior power handling and linearity compared to planar alternatives in similar frequency bands.

Part Context

This part belongs to the ZHSS series from Mini-Circuits, which specializes in suspended substrate filters. These components are engineered for high-performance RF and IF applications, offering robust construction suitable for demanding microwave environments where stability and precision are critical.

Replacement Considerations

Check for direct substitutes within the ZHSSM series or other Mini-Circuits high-pass filters if pinout or connector variations are needed. Verify frequency overlap and impedance matching before swapping to ensure circuit compatibility.
