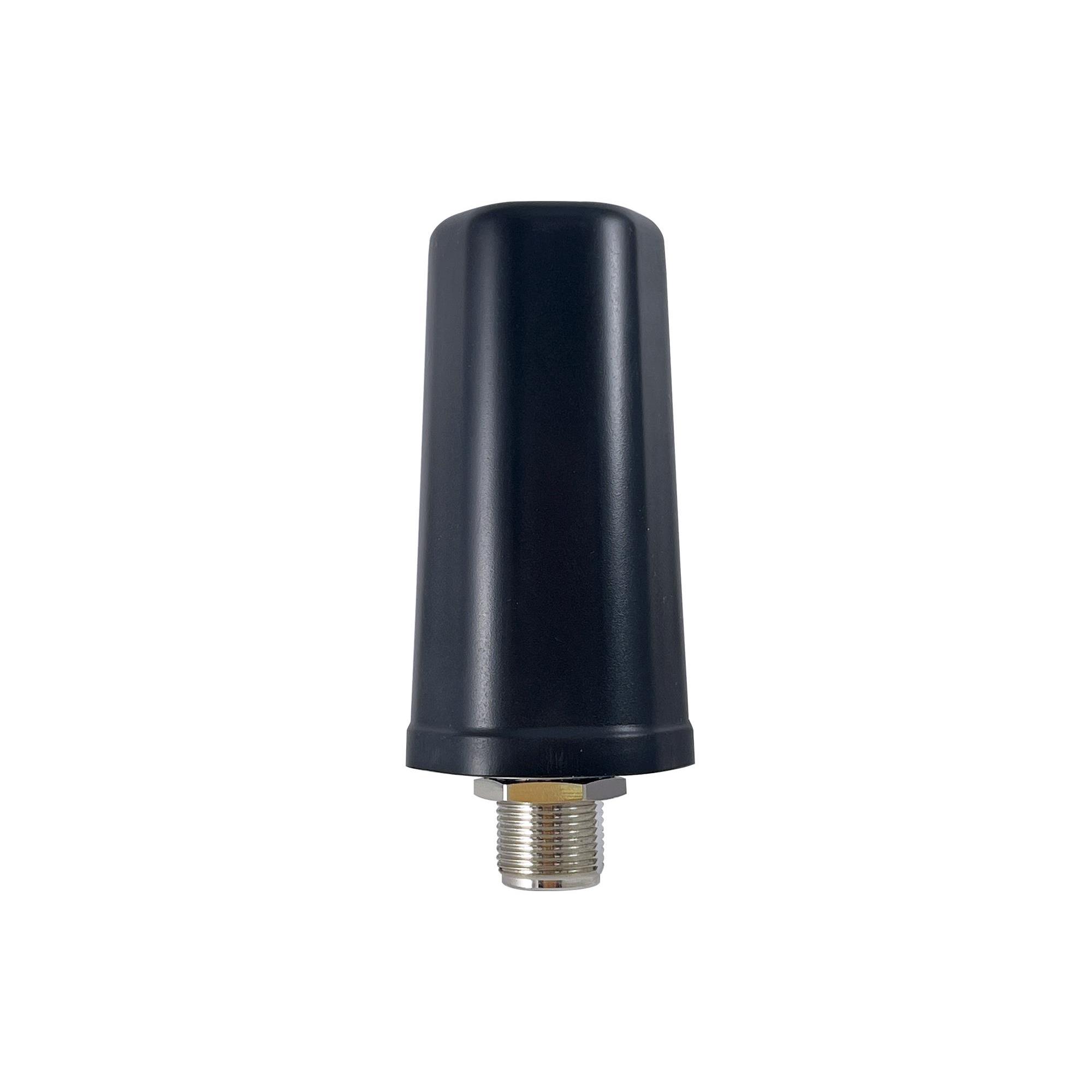

ZHX-3802NF3B is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT 5G DOME N JACK FEMALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ZHX-3802NF3B
- Description：ANT 5G DOME N JACK FEMALE
- Series：3802
- Mfr：Joymax Electronics
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz
- Frequency Range：617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Dome
- Number of Bands：8
- VSWR：3.6, 2.8, 2.3, 2.5, 2, 2.8
- Return Loss：-5dB, -6.5dB, -8.1dB, -7.4dB, -9.5dB, -6.5dB
- Gain：4.1dBi, 7.1dBi, 6.8dBi, 6.2dBi, 10dBi, 8.9dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：3.059" (77.70mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：10 W
Antennas RF datasheet and documents for ZHX-3802NF3B
Antennas RF Overview
The Joymax Electronics ZHX-3802NF3B is a dome-style, panel-mount dipole antenna engineered for cellular communication systems. It supports multiple frequency bands including 5G New Radio FR1, LTE, and Cellular IoT applications such as LTE-M. The unit features an N-Type female connector for secure interface attachment. Designed with an IP67 rating, the antenna provides robust environmental protection suitable for outdoor or harsh operational conditions.
Antennas RF Feature Summary
- Dome-style panel-mount design for structural integration
- IP67 rated housing for environmental durability
- N-Type female connector interface
Antennas RF Applications
- 5G New Radio FR1 deployments
- LTE network infrastructure
- Cellular IoT (LTE-M) systems
Antennas RF Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm compatibility with your system requirements. Ensure that the N-Type female connector matches your cable assembly specifications. Confirm that the IP67 rating meets the environmental standards required for your installation location. Cross-reference technical parameters with the latest datasheet before finalizing procurement decisions.
Antennas RF Selection Notes
Select this component when a durable, panel-mounted solution is required for cellular frequencies. The IP67 rating makes it suitable for exposed installations where weather resistance is critical. Ensure the N-Type connector aligns with existing RF chain components. Consider the dome form factor for aesthetic or aerodynamic constraints in the deployment environment.
Antennas RF Part Context
This antenna belongs to Joymax Electronics' portfolio of RF antennas designed for IoT and cellular applications. The company specializes in simplifying RF integration for engineers. This specific model addresses the need for reliable connectivity in 5G and LTE networks while maintaining physical robustness through its sealed dome construction and standard connector interface.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify mechanical dimensions and electrical performance characteristics if considering alternative models from other manufacturers to ensure functional equivalence.
Explore related parts through RF and Wireless, all product categories, ChipApex homepage.
