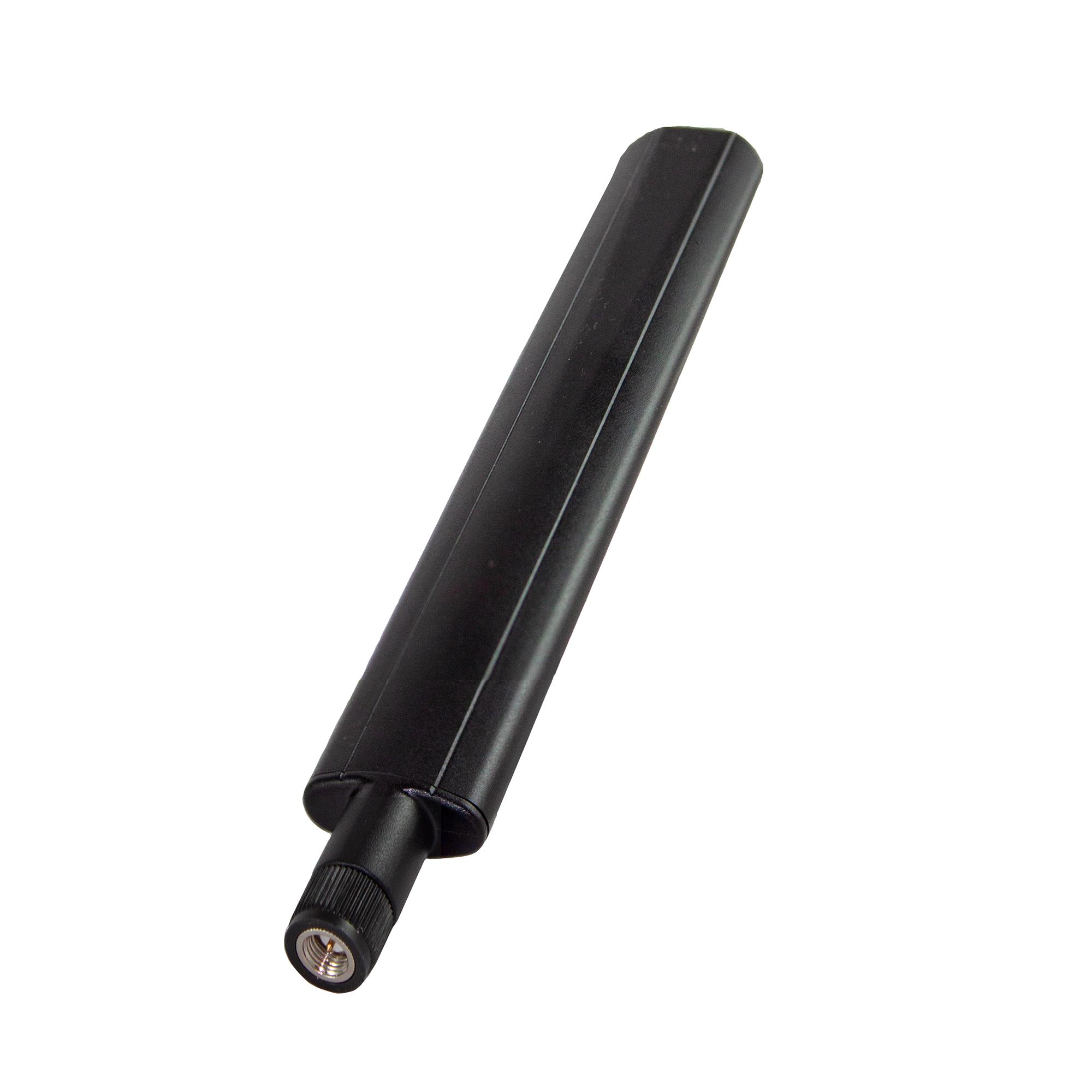

ZHX-713ASA4B is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT 5G STR BLADE SMA PLUG IP67. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ZHX-713ASA4B
- Description：ANT 5G STR BLADE SMA PLUG IP67
- Series：713
- Mfr：Joymax Electronics
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz
- Frequency Range：450MHz, 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Blade, Straight
- Number of Bands：9
- VSWR：2.0, 2.4, 2.0, 1.9, 1.9, 1.6, 1.7
- Return Loss：-9.5dB -7.7dB, -9.5dB, -10.2dB, -10.2dB, -12.7dB, -11.7dB
- Gain：0.7, 2.1, 3.7, 2.7, 2.8, 3.6, 3.9
- Features：-
- Termination：SMA Male
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：6.488" (164.80mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：1 W
Antennas RF datasheet and documents for ZHX-713ASA4B
Antennas RF Overview
The Joymax Electronics ZHX-713ASA4B is a straight blade-style RF antenna designed for wideband cellular applications. It supports 2G, 3G, 4G, 5G, and LTE technologies, including 5G New Radio FR1. The unit features an IP67 rating for environmental protection and utilizes a straight SMA male connector for mounting. Key frequency bands include 450MHz, 657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, and 6.525GHz. The maximum height of the antenna is 164.80mm (6.488 inches).
Antennas RF Feature Summary
- Straight blade design with IP67 environmental sealing.
- Supports multiple cellular generations including 5G NR FR1.
- Equipped with a straight SMA male connector interface.
Antennas RF Applications
- 5G New Radio FR1 deployments
- LTE and Cellular IoT networks
- Wideband mobile communication systems
Antennas RF Procurement Notes
Verify the exact part number against official Joymax Electronics documentation to confirm specifications. Ensure compatibility with SMA male interfaces and IP67 requirements for outdoor or harsh environments. Cross-reference frequency ranges with system design needs before procurement.
Antennas RF Selection Notes
Select this model when a straight form factor is required for wideband cellular coverage. Consider the IP67 rating for weather-resistant installations. Verify that the SMA male connector aligns with existing cable assemblies and mounting hardware constraints.
Antennas RF Part Context
This component belongs to Joymax Electronics' lineup of external cellular antennas. It is distinct from tilt/swivel variants like the ZWX-713ASA4B by its fixed straight geometry. The product targets IoT and M2M applications requiring robust wireless connectivity across multiple frequency bands.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Users should consult official manufacturer catalogs for equivalent models with similar connector types and frequency ranges.
