ZJYS51R5-2P-G01

Description：CMC 2A 2LN 200 OHM SMD
Series：ZJYS51
Mfr：TDK Corporation
Package：Tape & Reel (TR)

SKU:cfaa36c048d7 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2A 2LN 200 OHM SMD
Series：ZJYS51
Mfr：TDK Corporation
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：120mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.270" L x 0.217" W (6.86mm x 5.50mm)
Height (Max)：0.200" (5.08mm)
Package / Case：Horizontal, 4 Gull Wing
Inductance @ Frequency：-
Impedance @ Frequency：200 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

ZJYS51R5-2P-G01

Overview

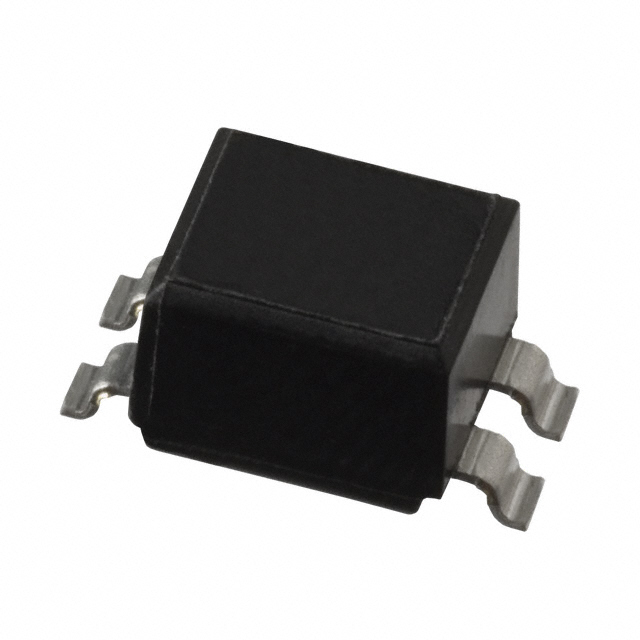

The ZJYS51R5-2P-G01 is a dual-line common mode choke manufactured by TDK Corporation, designed for surface mount technology. It features an impedance of 200 Ohms at frequencies ranging from 20MHz to 300MHz. The component supports a rated current of 2A with a maximum DC resistance of 120mOhms. It operates within a temperature range of -40°C to 125°C and has a maximum height of 5.08mm.

Feature Summary

Provides distortion-free noise removal from transmission signals
Optimized for high-quality signal transmission
Dual-line configuration for common mode filtering

Applications

Transmission signal lines requiring noise suppression
High-speed data interface protection
Common mode filter circuits in electronic devices

Procurement Notes

Verify the exact suffix G01 against official TDK documentation to confirm package dimensions and soldering compatibility. Ensure the selected variant matches the required impedance curve and current rating for the specific application environment. Cross-reference the datasheet for reflow soldering profiles to prevent thermal damage during assembly.

Selection Notes

Select this component when dual-channel common mode filtering is required for high-frequency signals. Consider the 2A current rating and low DC resistance for power efficiency. Verify that the operating temperature range of -40°C to 125°C meets the environmental requirements of the target system.

Part Context

This part belongs to TDK's signal line common mode chokes series, specifically engineered for noise reduction in transmission lines. It complements other variants like ZJYS51R5-4P for multi-line applications. The design focuses on maintaining signal integrity while suppressing electromagnetic interference in compact surface-mount form factors.

Replacement Considerations

Check TDK datasheets for direct substitutes such as ZJYS51R5-2PT or ZJYS51R5-2PBT-01. Verify pinout compatibility and electrical parameters before substitution. Ensure the alternative part meets the same impedance and current specifications.
