ZL2106ALCFT

Voltage Regulators - DC DC Switching Regulators Overview

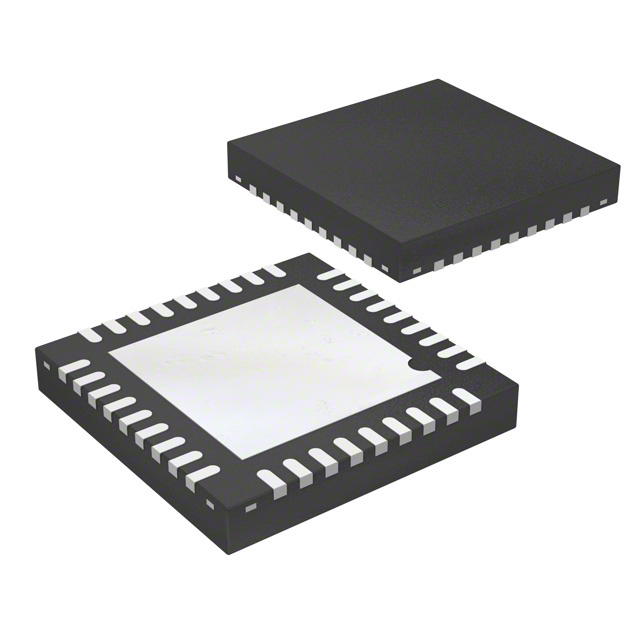

The ZL2106ALCFT is a digital synchronous step-down DC/DC converter manufactured by Renesas Electronics Corporation. It belongs to the Zilker Labs series and features an integrated controller with power stages in a QFN-EP-36 package. The device supports an input voltage range of 4.5V to 14V, delivering up to 6A of output current. It operates at a switching frequency of 400kHz and provides a single non-isolated output. The component is designed for high-efficiency power management in compact applications.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrates a digital synchronous buck converter with advanced fault management capabilities
• Features SMBus interface for programmable control and monitoring
• Combines key power and fault management functions within a small footprint package

Voltage Regulators - DC DC Switching Regulators Applications

• Evaluation of digital DC/DC converter performance
• Development of point-of-load power supplies
• Testing of synchronous step-down regulator topologies

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm package integrity and moisture sensitivity handling requirements prior to assembly. Cross-reference datasheet specifications against application requirements to ensure compatibility with existing design constraints and thermal management solutions.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for applications requiring digital control of synchronous buck converters. Consider the 6A output capability and 400kHz switching frequency for balanced efficiency and size. Ensure PCB layout supports the QFN-EP-36 package thermal requirements and SMBus connectivity for proper system integration and monitoring.

Voltage Regulators - DC DC Switching Regulators Part Context

The ZL2106ALCFT is part of the Zilker Labs family of digital power management ICs from Renesas. These devices are designed to replace traditional analog controllers with flexible digital solutions. The series offers programmability and enhanced diagnostics, catering to modern electronics that demand precise power regulation and efficient energy usage in space-constrained environments.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify availability of direct replacements or pin-compatible alternatives through official Renesas channels.
