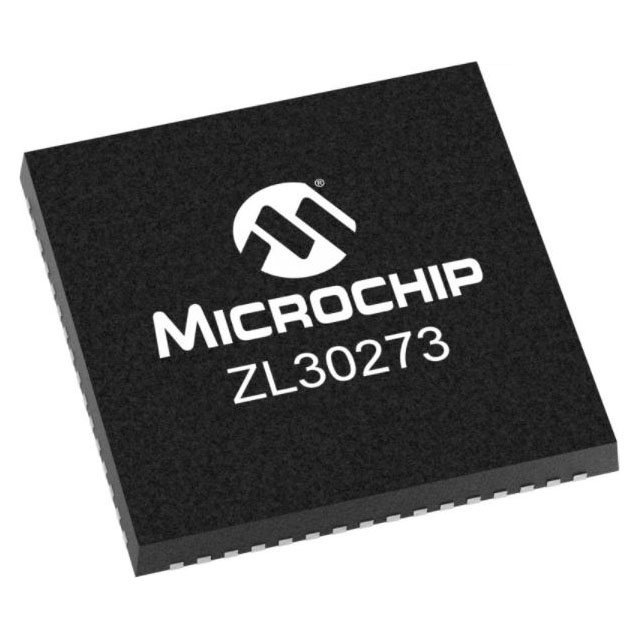

ZL30273LDG1

Clock Generators, PLLs, Frequency Synthesizers Overview

The ZL30273LDG1 is a clock synthesizer and jitter cleaner manufactured by Microchip Technology. It functions as a 1-channel, 10-output jitter attenuator designed for high-performance timing applications. The device integrates a Phase-Locked Loop (PLL) to clean and distribute clock signals with reduced phase noise. It supports various output formats suitable for digital communication systems. The component operates within a specified temperature range and utilizes surface-mount packaging for integration into compact electronic designs.

Clock Generators, PLLs, Frequency Synthesizers Feature Summary

• Integrates a single-phase locked loop channel for precise frequency synthesis
• Provides ten distinct output channels for clock distribution
• Performs jitter attenuation to improve signal integrity in data paths
• Supports flexible clock generation configurations for system synchronization

Clock Generators, PLLs, Frequency Synthesizers Applications

• High-speed serial link clock distribution
• Data converter clocking systems
• Telecommunications infrastructure equipment
• Network switch and router timing solutions

Clock Generators, PLLs, Frequency Synthesizers Procurement Notes

Verify the specific suffix codes against the official datasheet to ensure correct package type and temperature rating. Confirm RoHS compliance status through manufacturer documentation prior to ordering. Check for recent Product Change Notifications that may affect pinout or electrical characteristics. Ensure supply chain sources are authorized distributors to guarantee part authenticity and traceability.

Clock Generators, PLLs, Frequency Synthesizers Selection Notes

Evaluate the input reference frequency requirements against the device's PLL capabilities. Consider the power consumption levels relative to system thermal constraints. Assess the need for external components such as voltage regulators or crystal oscillers based on the design architecture. Compare output drive strengths with load requirements to determine if additional buffering is necessary for signal integrity.

Clock Generators, PLLs, Frequency Synthesizers Part Context

This component belongs to the ZL30273 family of jitter attenuators from Microchip Technology. It is categorized under clock generators and support products within the broader portfolio of timing solutions. The device complements other clock buffers and multipliers in system designs requiring low-jitter performance. It represents a specialized solution for applications where signal purity is critical for data transmission accuracy.

Clock Generators, PLLs, Frequency Synthesizers Replacement Considerations

Consult the official Microchip cross-reference guide for verified substitute part numbers. Verify compatibility of pinouts and electrical specifications before substituting. Ensure that any alternative device meets the same jitter attenuation and output count requirements.
