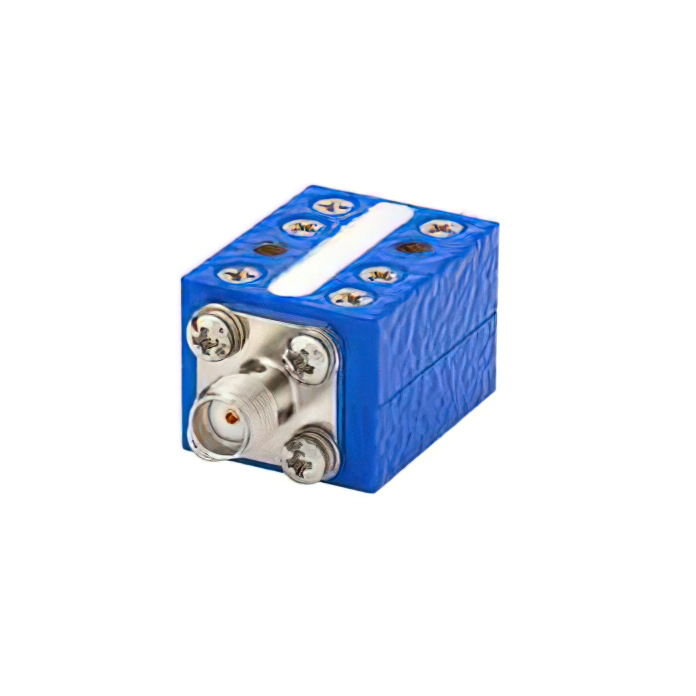

ZLSS-2R8G-S+

$239.97

Description：LPF, DC - 2800 MHZ, 50
Series：-
Mfr：Mini-Circuits
Package：Bag

SKU:ce3a23c90642 Category: RF Filters Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LPF, DC - 2800 MHZ, 50
Series：-
Mfr：Mini-Circuits
Package：Bag
Frequency：2.8GHz
Bandwidth：2.8GHz
Filter Type：Low Pass
Ripple：-
Insertion Loss：2dB
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Size / Dimension：0.900" L x 0.700" W (22.86mm x 17.78mm)
Height (Max)：0.650" (16.51mm)

Download product information

ZLSS-2R8G-S+

Overview

The ZLSS-2R8G-S+ is a suspended substrate low pass filter manufactured by Mini-Circuits. It operates from DC to 2800 MHz with a center frequency of 2.8 GHz. The component features SMA connectors and maintains a 50 Ohm impedance. It belongs to the ZLSS series and utilizes RA2456 case styling for signal conditioning applications.
