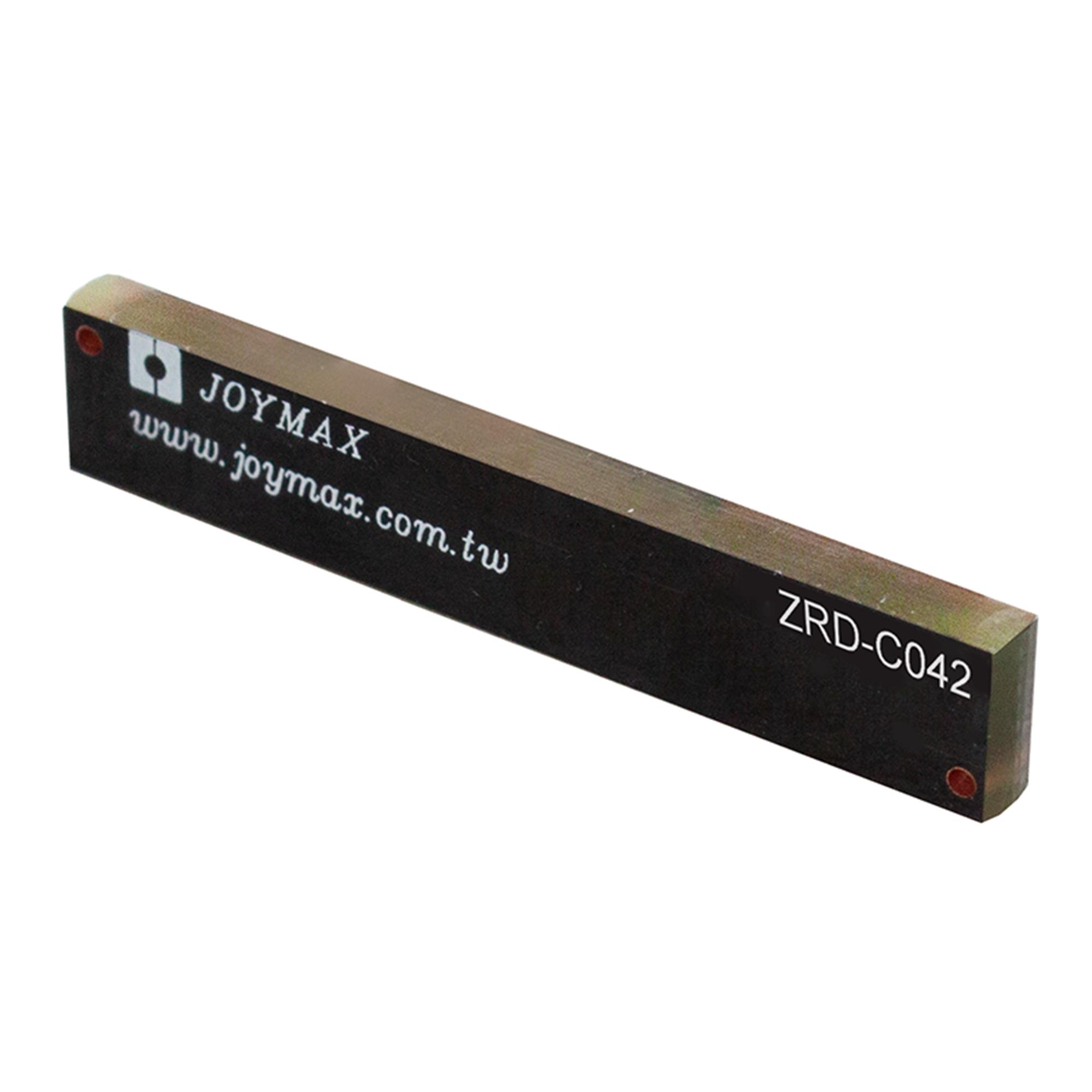

ZRD-C042XX3B is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT 5G/LTE 617~7125MHZ SMD CHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ZRD-C042XX3B
- Description：ANT 5G/LTE 617~7125MHZ SMD CHIP
- Series：C042
- Mfr：Joymax Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz
- Frequency Range：617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：Chip
- Number of Bands：8
- VSWR：2.8, 3.0, 2.4, 2.3, 2.8, 2.5
- Return Loss：-6.5dB, -6dB, -7.7dB, -8dB, -6.5dB, -7.4dB
- Gain：1.4dBi, 4.8dBi, 3.1dBi, 3.3dBi, 4.8dBi, 3.7dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.126" (3.20mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：1 W
Antennas RF datasheet and documents for ZRD-C042XX3B
Antennas RF Overview
The ZRD-C042XX3B is a surface-mount chip antenna manufactured by Joymax Electronics. It is an embedded, monopole design intended for integration into compact electronic devices. The component supports multiple wireless communication standards including 5G New Radio FR1, LTE, and Cellular IoT technologies such as LTE-M.
Antennas RF Feature Summary
- Surface-mount chip antenna design
- Embedded monopole configuration
- Supports 5G NR FR1 and LTE bands
- Compatible with Cellular IoT applications
Antennas RF Applications
- 5G New Radio FR1 devices
- LTE mobile terminals
- Cellular IoT modules (LTE-M)
- Compact wireless communication hardware
Antennas RF Procurement Notes
Verify the specific manufacturer datasheet to confirm impedance matching requirements and recommended layout guidelines. Ensure the supplier provides authentic components from Joymax Electronics. Cross-reference the part number with official distributor catalogs to confirm current availability status and technical specifications before finalizing procurement orders.
Antennas RF Selection Notes
Select this component for designs requiring integrated 5G and LTE connectivity in space-constrained environments. The surface-mount package facilitates automated assembly processes. Consider the antenna's radiation pattern and ground plane requirements during PCB layout to ensure optimal signal performance across the supported frequency bands.
Antennas RF Part Context
This part belongs to Joymax Electronics' portfolio of RF antennas. It is categorized under passive components designed for wireless connectivity. The product line includes various antenna types for different frequency ranges and mounting styles, serving the broader telecommunications and IoT hardware markets.
Antennas RF Replacement Considerations
Consult official Joymax documentation for direct substitutes. Evaluate alternative surface-mount chip antennas with compatible frequency coverage for 5G NR FR1 and LTE. Verify mechanical footprint and electrical parameters match the original design requirements before substitution.
