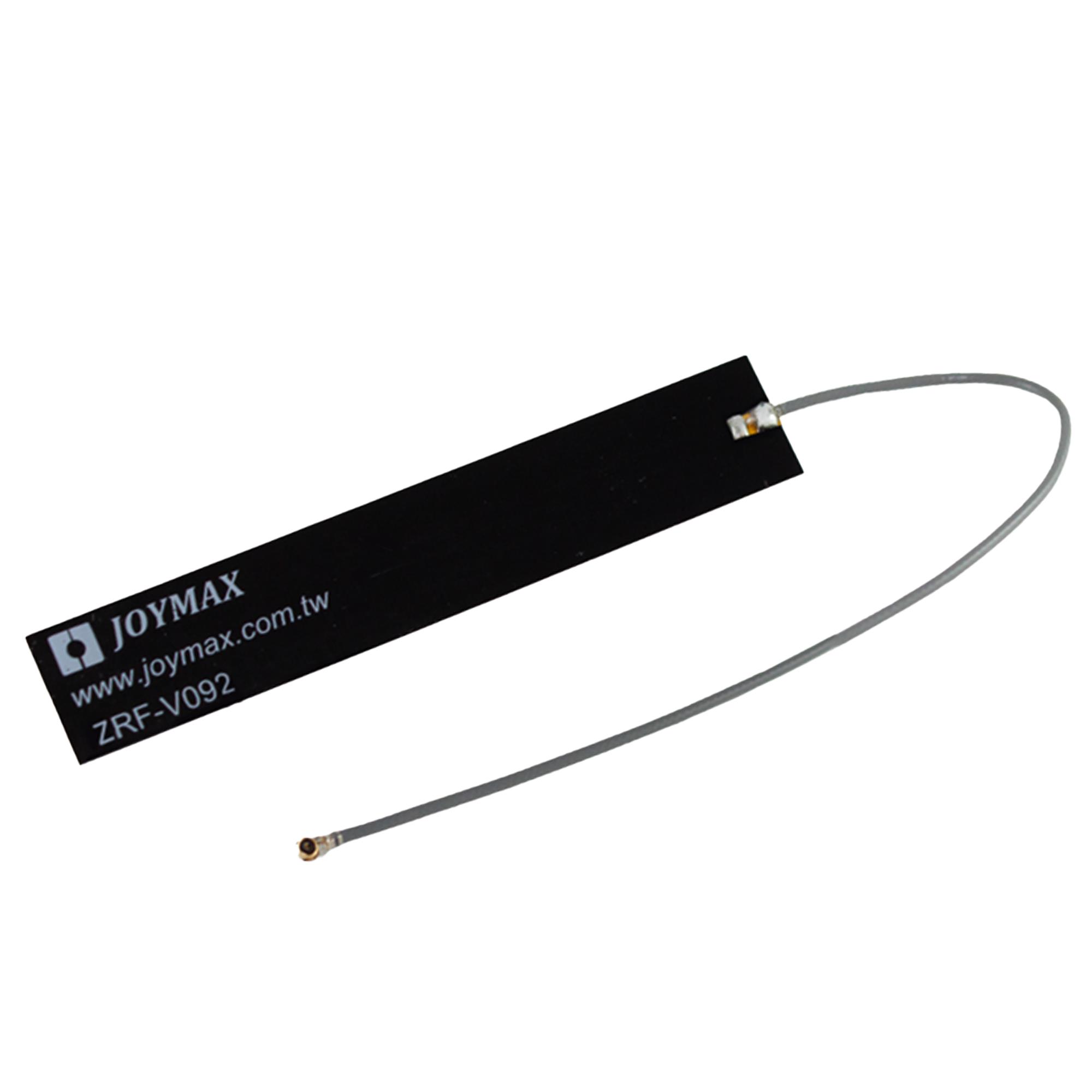

ZRF-V092MP3B-W012 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Joymax Electronics. Its product description is ANT 5G PCB 120MM CABLE MHF1 PLUG. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ZRF-V092MP3B-W012
- Description：ANT 5G PCB 120MM CABLE MHF1 PLUG
- Series：V092
- Mfr：Joymax Electronics
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz
- Frequency Range：617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Antenna Type：PCB Trace
- Number of Bands：8
- VSWR：3.0, 2.1, 1.9, 1.9, 1.8, 2.9
- Return Loss：-6.0, -9.0, -10.2, -10.2, -10.9, -6.3
- Gain：3.1, 4.0, 2.6, 4.3, 4.0, 5.1
- Features：Cable - 120mm
- Termination：MHF, U.FL
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.031" (0.80mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：1 W
Antennas RF datasheet and documents for ZRF-V092MP3B-W012
Antennas RF Overview
The ZRF-V092MP3B-W012 is a flat patch RF antenna manufactured by Joymax Electronics, designed for mobile communication applications. It supports multiple cellular standards including 2G, 3G, 4G LTE, and 5G New Radio FR1. The component utilizes an MHF1 connector interface and features an adhesive mounting method for secure integration into device enclosures. As a rigid PCB dipole design, it provides necessary signal transmission capabilities for IoT and industrial gateways requiring multi-band connectivity.
Antennas RF Feature Summary
- Supports 2G, 3G, 4G LTE, and 5G NR FR1 frequency bands
- Utilizes MHF1 connector interface for system integration
- Adhesive mount design for secure attachment
Antennas RF Applications
- 5G New Radio FR1 devices
- LTE mobile terminals
- IoT gateways
Antennas RF Procurement Notes
Verify the specific suffix W012 against official Joymax documentation to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with the MHF1 connector type required by the host system. Cross-reference datasheet specifications for VSWR and gain values relevant to the target frequency bands before procurement.
Antennas RF Selection Notes
Select this model when multi-band cellular support from 2G through 5G is required in a compact form factor. The adhesive mounting style suits applications where space constraints prevent traditional standoff installations. Confirm that the MHF1 interface matches the existing RF circuitry layout within the device design.
Antennas RF Part Context
This part belongs to the ZRF-V092 series of adhesive-mount rigid PCB dipole antennas. The series is engineered for modern wireless communication systems, offering a balance between performance and low profile. It serves as a critical component for maintaining signal integrity in portable and fixed wireless endpoints.
Antennas RF Replacement Considerations
Consult official Joymax documentation for direct substitutes within the ZRF-V092 family. Verify that any alternative part number maintains identical connector types and mounting configurations to ensure seamless integration without redesigning the host assembly.
