ZSS-107-09-G-D-1240

Headers, Male Pins Overview

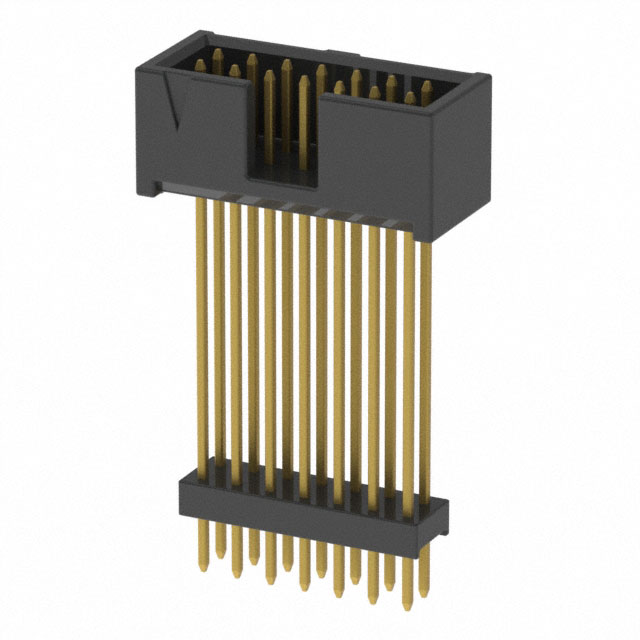

The ZSS-107-09-G-D-1240 is a 14-position, dual-row shrouded elevated terminal header from Samtec’s Flex Stack series. It features a 2.54 mm (0.100 in) pin-to-pin spacing and straight through-hole solder termination. The connector utilizes gold-plated phosphor bronze contacts housed in black polyester insulation with UL 94 V-0 flammability rating. Designed for board-to-board and cable applications, it operates within a temperature range of -55°C to +125°C and provides an insulation resistance of 5 GOhms.

Headers, Male Pins Feature Summary

• Elevated shrouded design ensures precise alignment and protection during mating
• Gold-plated contacts provide reliable signal transmission and corrosion resistance
• Polyester housing offers high mechanical stability and UL 94 V-0 flame retardancy

Headers, Male Pins Applications

• Board-to-Board interconnections
• Cable-to-Board connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific lead number suffix (09) against the target PCB footprint dimensions, as this parameter defines the standoff height. Confirm that the gold plating specification meets the required contact resistance standards for the intended signal integrity. Ensure the operating temperature range aligns with the environmental conditions of the final assembly.

Headers, Male Pins Selection Notes

Select this component when a fixed-height, shrouded header is required for robust board-to-board stacking. The 2.54 mm pitch suits general-purpose digital and power signals. Consider the elevated profile for accommodating underlying components or ensuring proper clearance. Verify compatibility with mating socket strips from the same Flex Stack family.

Headers, Male Pins Part Context

This part belongs to the ZSS series, designed for flexible stacking solutions. It complements other headers in the Flex Stack ecosystem, allowing for variable height configurations while maintaining consistent electrical performance. The series supports various lead lengths and shroud types to meet diverse mechanical constraints.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 14-position, dual-row, 2.54 mm pitch, and shrouded specifications with equivalent industrial connectors.

Headers, Male Pins FAQ

What is the material of the contacts?

The contacts are made of phosphor bronze with a gold plating finish.

Is the connector shrouded?

Yes, the ZSS-107-09-G-D-1240 features a shrouded housing design.
