ZSS-108-04-S-D-840

Headers, Male Pins Overview

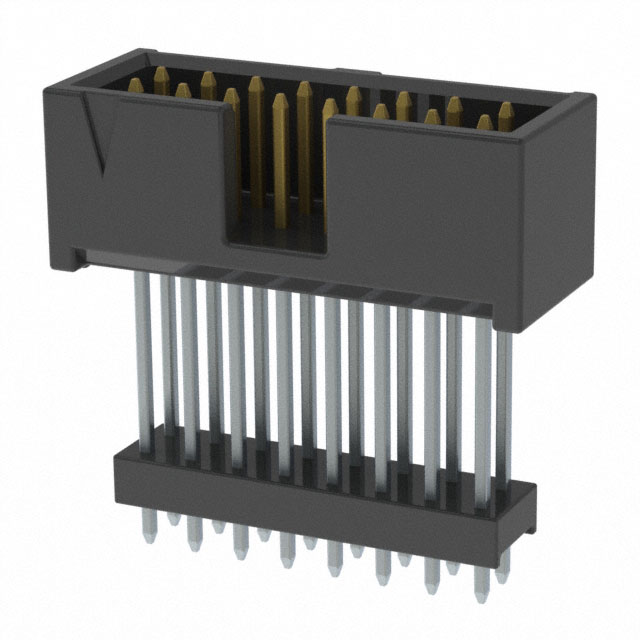

The ZSS-108-04-S-D-840 is a board stacking connector from the Samtec Flex Stack series. It features a .100 inch (2.54 mm) pitch with 16 contacts arranged in two rows. The male connector utilizes gold-plated phosphor bronze contacts and straight through-hole termination. Designed for blind mating, it incorporates an elevated shroud structure to facilitate precise alignment during assembly.

Headers, Male Pins Feature Summary

• Elevated shroud design enables reliable blind mating applications
• Flex Stack architecture allows modified post height and body position adjustments
• Gold-plated square post contact system ensures secure electrical connection

Headers, Male Pins Applications

• Blind mating interconnects
• Board stacking assemblies
• Elevated terminal strip configurations

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official documentation to confirm exact physical dimensions and termination style. Confirm that the selected variant matches the required insulation height and contact length specifications for the target application before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when blind mating capabilities are required within a board stacking environment. The elevated shroud design distinguishes it from standard headers, providing necessary guidance for alignment. Ensure the application accommodates the specific insulation height and post length characteristics defined by the series.

Headers, Male Pins Part Context

This part belongs to the ZSS series of shrouded elevated terminal strips. The series is characterized by its Flex Stack design, which supports modified post heights and body positions in small increments. It serves as a specialized solution for complex board stacking requirements where standard connectors are insufficient.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for verified alternatives. Generic equivalents may not replicate the specific elevated shroud geometry or Flex Stack adjustment capabilities required for blind mating operations.
