ZSS-110-02-L-D-545

Headers, Male Pins Overview

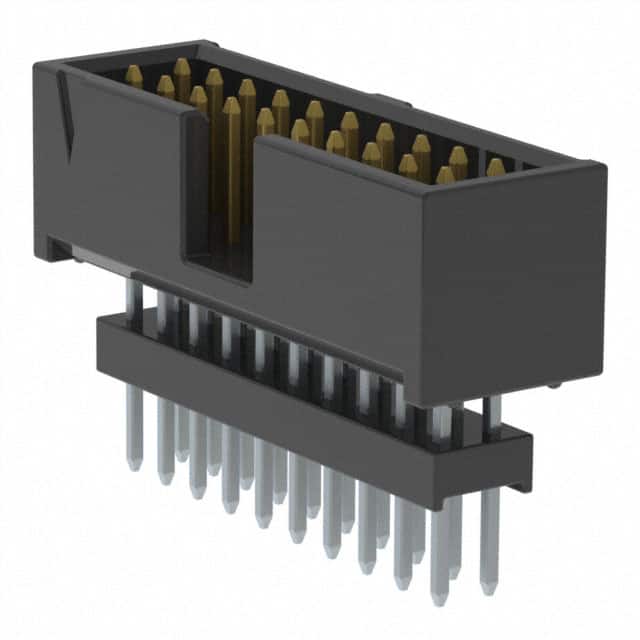

The ZSS-110-02-L-D-545 is a flexible board stacking header manufactured by Samtec Inc. It features a .100" (2.54 mm) pitch and provides 20 positions across two rows. The connector utilizes phosphor bronze contacts with gold plating and polyester glass-filled insulation. Designed for vertical or right-angle mounting, it supports an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Flexible board stacking design accommodates misalignment during mating
• Shrouded housing enables blind mating applications
• Keying slot ensures correct orientation during assembly

Headers, Male Pins Applications

• Board-to-board interconnects requiring flexible stacking
• Blind mating scenarios in compact electronic assemblies
• Vertical or right-angle PCB mounting configurations

Headers, Male Pins Procurement Notes

Verify the specific suffix "-545" against official Samtec documentation to confirm keying slot placement and mechanical tolerances. Ensure compatibility with mating socket strips such as the ESQ series. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process before procurement.

Headers, Male Pins Selection Notes

Select this component when flexible board stacking capabilities are required to absorb alignment errors. The shrouded design is suitable for blind mating operations where visual alignment is not possible. Verify that the .100" pitch and 20-position count match the target circuit board layout and mating connector specifications.

Headers, Male Pins Part Context

This part belongs to Samtec's ZSS series of flexible board stacking headers. These components are engineered to provide reliable connections while accommodating slight positional deviations between stacked boards. The series offers various mounting orientations and contact configurations for diverse electronic integration needs.

Headers, Male Pins Replacement Considerations

Official substitutes within the same family include variations of the ZSS series with different pin counts or mounting angles. Cross-reference with ESQ elevated socket strips for mating compatibility. No direct third-party equivalents are confirmed in public documentation.
