ZSS-110-03-L-D-720

Headers, Male Pins Overview

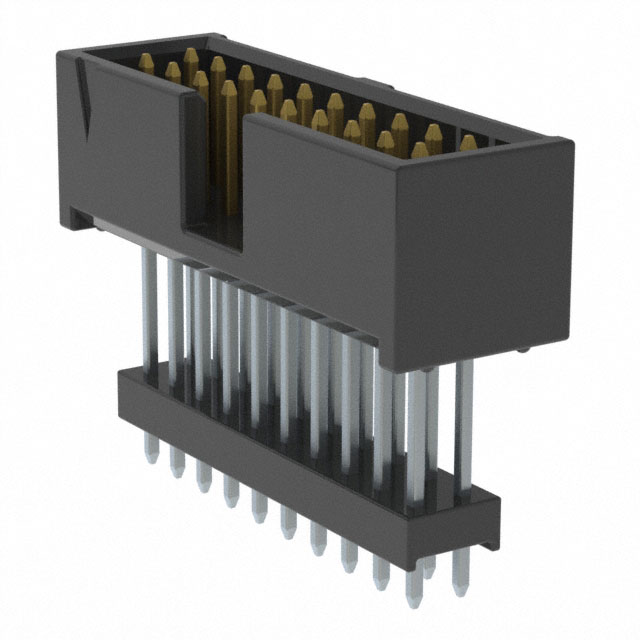

The ZSS-110-03-L-D-720 is a board stacking connector manufactured by Samtec Inc. It features 20 contacts arranged in two rows with male pin terminals. The connector utilizes a straight through-hole solder termination style and includes a shrouded housing design. Contact mating surfaces are finished with gold plating, while the termination ends are gold-plated as well. The unit operates within a temperature range of -55°C to +125°C and meets RoHS compliance standards.

Headers, Male Pins Feature Summary

• Shrouded housing design for precise alignment during board stacking applications
• Male contact configuration with gold plating for reliable electrical connection
• Straight through-hole mounting style suitable for rigid PCB integration

Headers, Male Pins Applications

• Board-to-board stacking interconnects
• High-density electronic assembly connections
• Rigid circuit board vertical integration

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Samtec documentation to confirm exact lead time and packaging specifications. Ensure that the ordering part number matches the required contact length and housing height variants available within the ZSS series. Cross-reference datasheet revisions to confirm material composition and plating thickness requirements for your specific application environment.

Headers, Male Pins Selection Notes

Select this component when a shrouded, high-reliability header is required for vertical board stacking. The two-row configuration supports higher density connections compared to single-row alternatives. Verify that the straight mounting angle aligns with your mechanical layout constraints and that the through-hole termination method is compatible with your manufacturing process capabilities.

Headers, Male Pins Part Context

This component belongs to the ZSS series of flexible stacking solutions from Samtec. These connectors are designed for high-density applications requiring robust mechanical stability. The series offers various configurations to accommodate different board thicknesses and spacing requirements while maintaining consistent electrical performance across diverse industrial environments.
