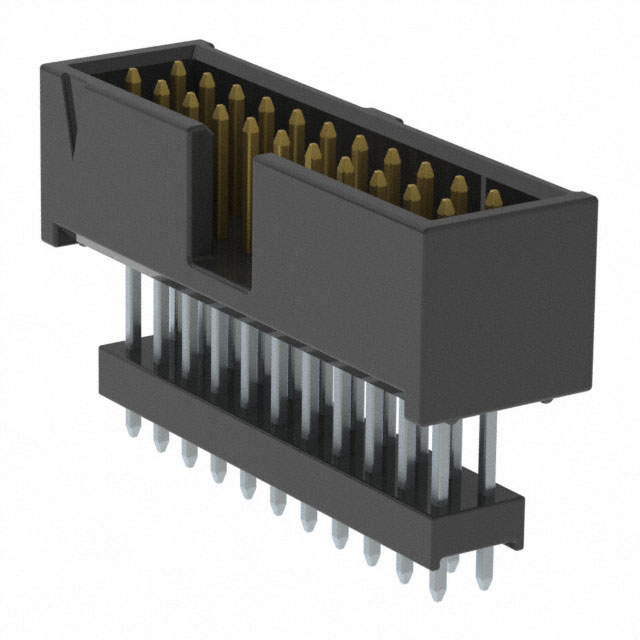

ZSS-111-02-S-D-627 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR .100" 22POS. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for ZSS-111-02-S-D-627
- Description：CONN HDR .100" 22POS
- Series：Flex Stack, ZSS
- Mfr：Samtec Inc.
- Package：Bulk,Bulk
- Connector Type：Header, Elevated
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：22
- Number of Rows：2
- Row Spacing - Mating：-
- Number of Positions Loaded：-
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for ZSS-111-02-S-D-627
Headers, Male Pins Overview
The ZSS-111-02-S-D-627 is a Flex Stack header from Samtec, featuring a 2.54 mm pitch and 22 positions in a dual-row configuration. It utilizes gold-plated phosphor bronze contacts with a UL 94 V-0 rated polyester housing. Designed for through-hole mounting at a straight angle, this shrouded elevated terminal strip supports board-to-board and cable applications within an operating temperature range of -55°C to +125°C.
Headers, Male Pins Feature Summary
- Shrouded design provides mechanical alignment and protection
- Elevated terminal strip structure accommodates specific height requirements
- Gold plating ensures reliable electrical conductivity
Headers, Male Pins Applications
- Board-to-board interconnections
- Cable assemblies integration
- Elevated connection scenarios
Headers, Male Pins Procurement Notes
Verify the exact part number against official Samtec documentation to confirm pin count and shroud specifications. Ensure compatibility with mating socket strips regarding elevation and contact length. Confirm RoHS compliance status and material certifications prior to procurement to meet project standards.
Headers, Male Pins Selection Notes
Select this component when a shrouded, elevated header is required for precise board-to-board or cable connections. The 2.54 mm pitch suits standard spacing needs, while the through-hole termination offers robust mechanical stability. Consider the specific insulation height and contact length for proper mating clearance.
Headers, Male Pins Part Context
This part belongs to the ZSS series, characterized as shrouded elevated terminal strips. It complements Samtec's broader portfolio of headers and wire housings designed for high-reliability interconnect solutions in compact electronic assemblies.
Headers, Male Pins Replacement Considerations
Consult official Samtec substitution guides for verified alternatives. Generic equivalents may not match the specific shrouding, elevation, or contact geometry required for proper function.
