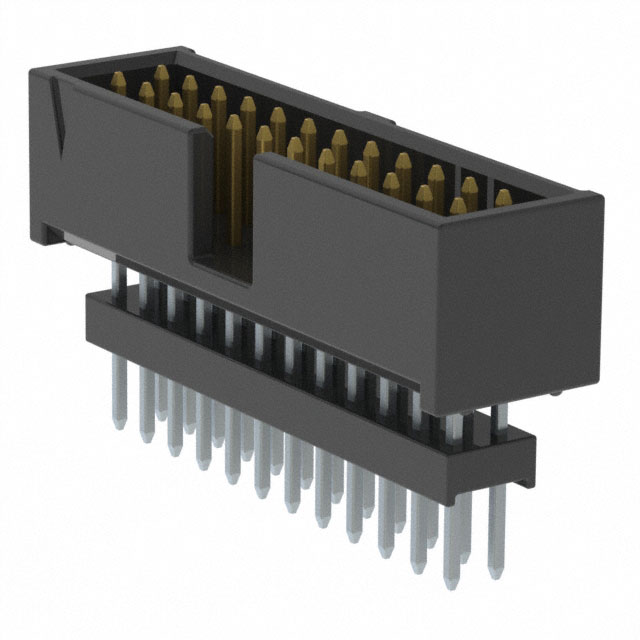

ZSS-112-02-S-D-590 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR .100" 24POS. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for ZSS-112-02-S-D-590
- Description：CONN HDR .100" 24POS
- Series：Flex Stack, ZSS
- Mfr：Samtec Inc.
- Package：Bulk,Bulk
- Connector Type：Header, Elevated
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：-
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for ZSS-112-02-S-D-590
Headers, Male Pins Overview
The ZSS-112-02-S-D-590 is a board stacking connector manufactured by Samtec Inc. It features 24 contacts arranged in two rows with a 2.54 mm (0.100 inch) pitch. The component utilizes male solder terminals and is designed for straight, surface-mounted installation. Key electrical specifications include gold-plated contacts and compliance with RoHS standards. This header is part of the ZSS series, providing reliable interconnection for board-to-board applications.
Headers, Male Pins Feature Summary
- Shrouded design for precise alignment
- Elevated terminal strip configuration
- Gold-plated contact finish
Headers, Male Pins Applications
- Board-to-board interconnections
- Mezzanine circuit connections
- Embedded communication systems
Headers, Male Pins Procurement Notes
Verify the specific ordering suffix to ensure correct lead length and termination style compatibility. Confirm that the shrouded header matches the mating socket requirements for your assembly. Check current availability status as distribution may vary by region. Ensure environmental compliance meets project specifications before finalizing procurement orders.
Headers, Male Pins Selection Notes
Select this component when a 2.54 mm pitch shrouded header is required for vertical board stacking. Consider the elevated terminal height for proper clearance with mating connectors. Verify that the male contact gender aligns with the intended female socket counterpart. Assess thermal and mechanical constraints to ensure suitability for the target operating environment.
Headers, Male Pins Part Context
This part belongs to the ZSS series of .100" shrouded elevated terminal strips from Samtec. These headers are designed to mate with SSW, SSQ, ESW, ESQ, SSM, and BCS type strips. The series offers various pin counts and lead styles to accommodate diverse PCB layout needs while maintaining consistent electrical performance.
Headers, Male Pins Replacement Considerations
Compatible mating parts include SSW, SSQ, ESW, ESQ, SSM, and BCS type strips. Verify physical dimensions and contact spacing before substituting any alternative components. Ensure that any replacement maintains the same shrouded and elevated terminal characteristics for proper fit.
